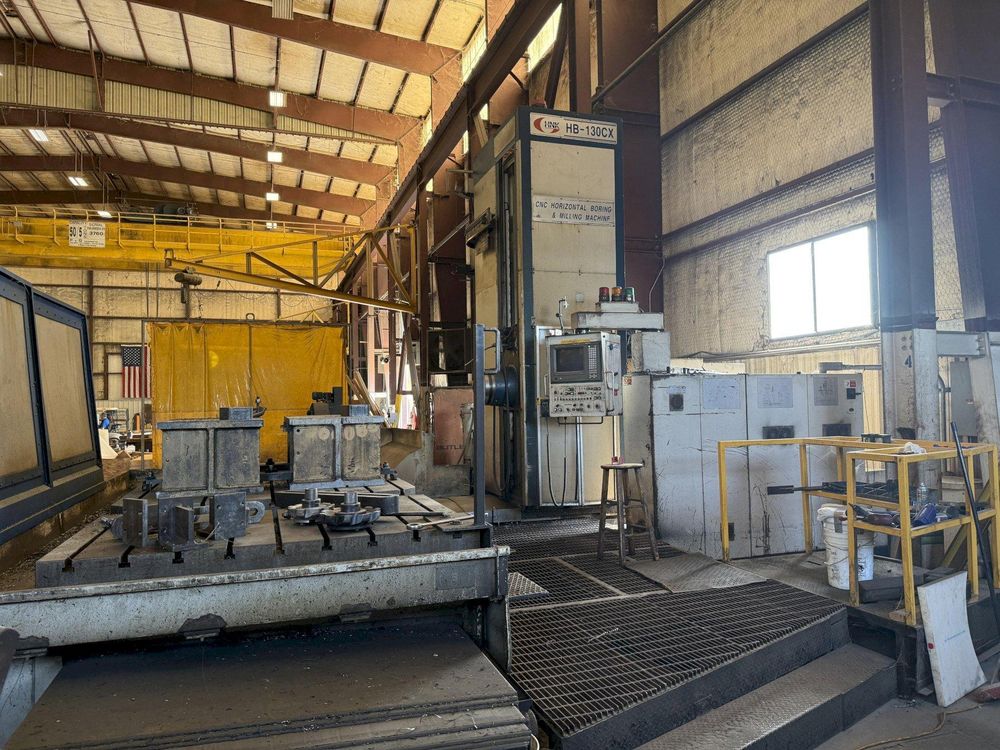

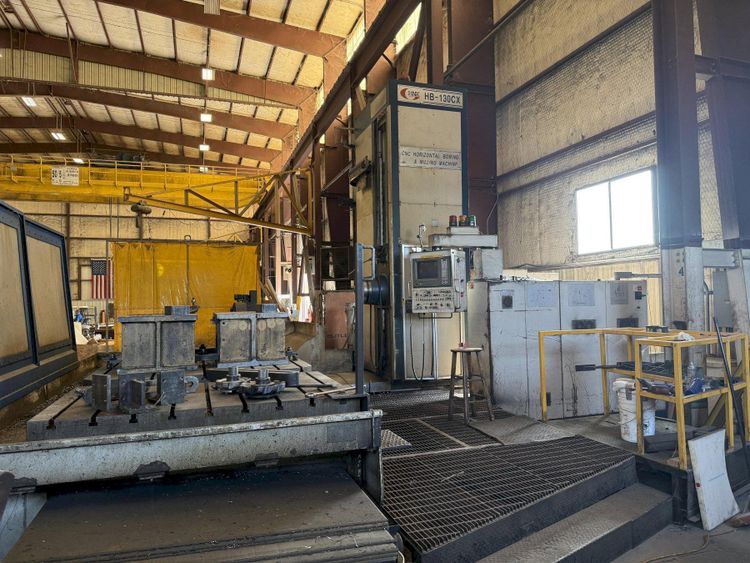

HNK HB-130CX 5.1 inches 2500 RPM (3 Gear Ranges)

X Axis Travel 157 inches
Y Axis Travel 90 inches
Z Axis Travel 51 inches
W Axis Travel 27.5 inches

CNC Control Fanuc 16 with portable MPG
Boring Spindle Diameter 5.1 inches
Distance Spindle Nose to Center of Table 30 - 80 inches
Distance Spindle Center to Top of Table 0 - 90 inches
Table Dimension 63" x 157"
Rotary Table Dimension 63" x 63"
Allowable Table Load 33,000 LBS
Rotary Table Load 22,000 LBS
Rotary Table Indexing 0.001 degree with 90 degree shot pins

Spindle Power 35 HP
Spindle Speeds 5 - 2,500 RPM (3 Gear Ranges)
Spindle Taper ISO #50, 7/24
Tool Changer Capacity 40 Tools
Tool Shank / Pull Stud CAT 50 / Max 403 B50T
Max Tool Weight 55 LBS
Max Tool Length in ATC 16"
Coolant Through Spindle
Chip Conveyor
Spindle Oil Chiller
Table Guarding (currently removed)
Machine Weight 108,000 LBS
Machine Dimensions 397" x 291" x 193" high
Floor Mounted – No Pit Required
