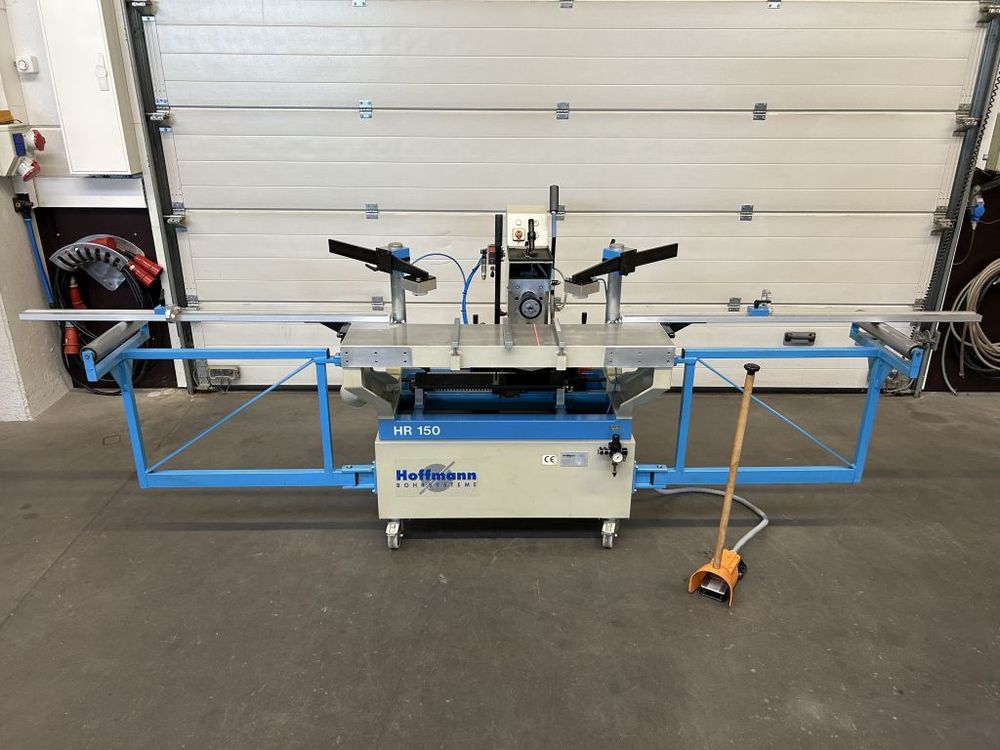

Hoffmann HR 150 Frame and Mortise Boring Machine
Ref :
2722272-15-MT
Condition :
Used
Manufacturer :
Hoffmann
Model :
HR 150
Short Description :
Frame and Mortise Boring Machine
Year(s) :
1996
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Motor power: 1.5 kW
Table size: 1,100 x 250 mm
Drilling depth 150 mm
Height adjustment: 100 mm
2 drilling levels (pneumatic stroke)
Height adjustment via counter
Lateral adjustment range of the drilling unit: 330 mm (with ratchet)
2-jaw drill chuck
2 pneumatic workpiece clamps (sliding)
2 side stops (pivoting)
1 center stop
Workpiece support with rollers L + R
Longitudinal stop with scale and flap stop L + R
Laser
Chassis
Operating pressure: 6 bar
Extraction connection: 80 mm
Weight: approx. 255 kg
Dimensions (W x D x H) : 110 x 130 x 126 cm
