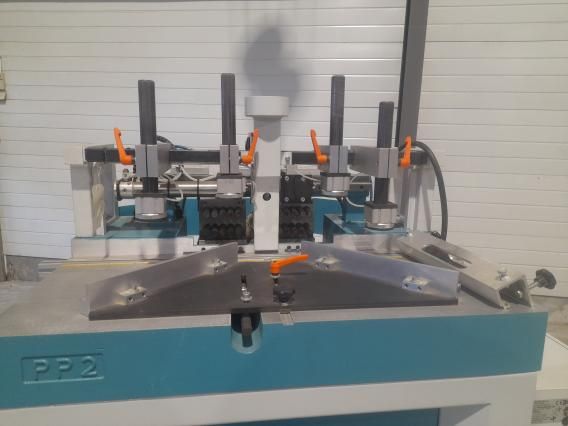

Hoffmann PP2H PNEUMATIC MILLING MACHINE

Used machine - overhauled
Exclusively horizontal milling
Machine designed for machining lightweight frames and curtain walls
Table: Cast aluminum with a large work surface and raised stops.
Function: Mills one groove per cycle, horizontal or vertical.
Control: SPS with milling height adjustment via handwheel and digital display.

Operation:
The automatic cycle is started with the foot pedal.
The workpiece is clamped, and milling is performed according to the defined depth and direction (horizontal or vertical).
At the end of the cycle, the milling unit returns to its initial position and the workpiece can be removed.
The motor starts and stops automatically.
All adjustments are manual.
Horizontal or vertical mode is selected on the control panel.

Technical Data:
Connection Values: 1ph/N/PE 230V, 50/60Hz, 1.7 kW
Air: 6 Bar
Motor: 1 x 1700 W
Rotation Speed: 25,000 rpm
Guide: SPS
Clamping: Pneumatic
Clearance Height: 250 mm
Milling Depth:
Vertical: 180 mm
Horizontal: 250 mm
Filter: Ø 100 mm
Cone Size: W-1/-2/-3/-4
Dimensions (W/D/H): 1000/750/1600 mm
Weight: 265 kg
Item Number: W 107 6000
