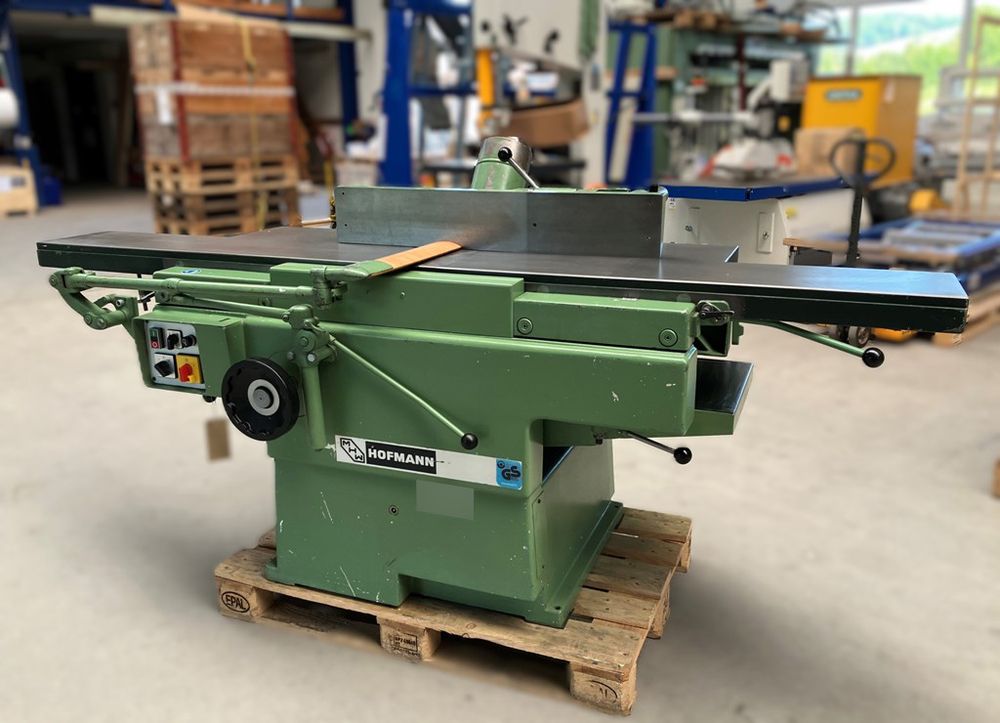

Hofmann AD 510

Dressing- Thickness Planing Machine
Machine stand in cast iron
A folding up of the dressing tables during thickness planing can largely be dispensed with, which
Accessibility is guaranteed by offset tables.
Hollow and pointed joint adjustment directly at the removal table; for thickness planing short pieces can both tables incl. Suction hood and stop are folded up.
– motor thickness table adjustment
– Rubber-in and pull-out rollers (new)
– Auto. Star Triangle Circuit

Abseed table length 2400 mm
Thickness passage 4-240 mm
Motor adjustment: Yes
Display Digital (SIKO): Yes
2 feed speeds 7 + 14m/min
Motor with safety brake 4.0 kW /400V(S1)
Power consumption 9.0A
Extraction 2 x ø160, 3500m3/h, 30m/s
Incl. SUVA Planer Protection

External mass: 2400x1200x1150mm
Weight: approx. 1000kg
Completely revised!
Unique state!
