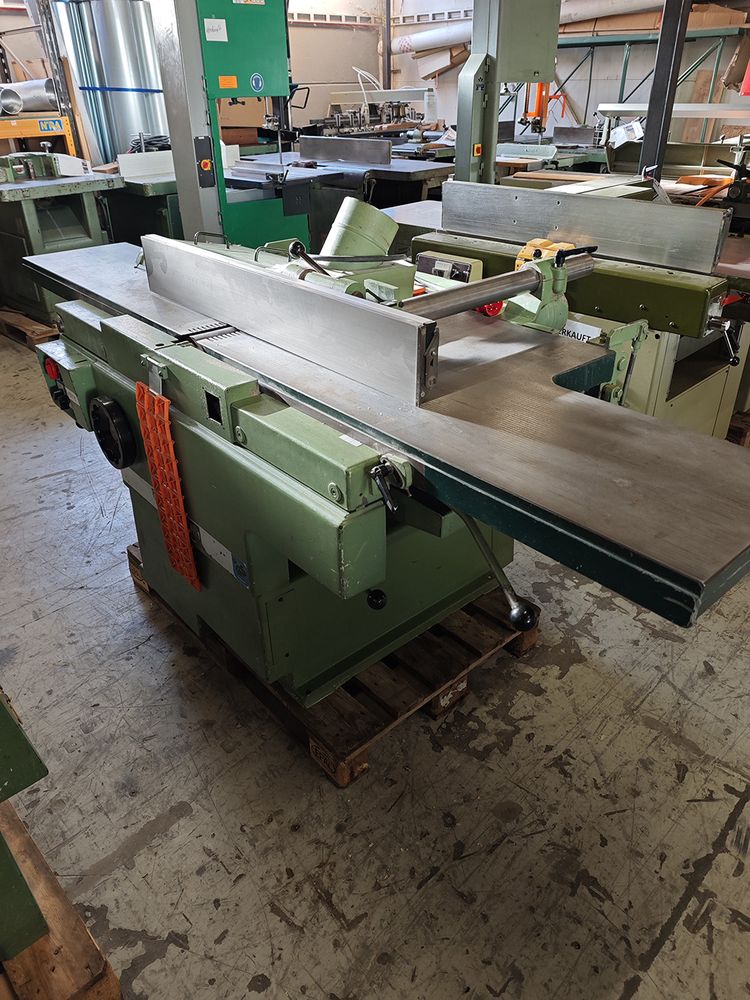

Hofmann AD 630

AD Planer
Motor 5.5 kW 400 Volt
Working width: 630 mm
Cutting cutterhead with 4 knives
4 reversible knives installed
Max. throughput: 240 mm
Motor brake: Yes
Cutting cutterhead guard: Individual link cover
Total length of worktables: 2500 mm
Table lips: Slotted
Max. depth of cut: 5 mm
Manual adjustment of depth of cut/jointering table
Swivel fence
Min. thickness planing height: 4 mm
Max. thickness planing height: 240 mm
Thickness table adjustment: Electric with manual fine adjustment
Thickness display: Mechanical digital display
Feed with 2 speeds: 7 + 14 m/min
2 sliding rollers in the thickness table
Sliding roller design: Height adjustable
Infeed pressure system: continuous pressure bar
Infeed rollers: grooved steel, continuous
Outfeed rollers: smooth steel
Weight: approx. 1300 kg
Dimensions: approx. 2500 x 960 x 980 mm
