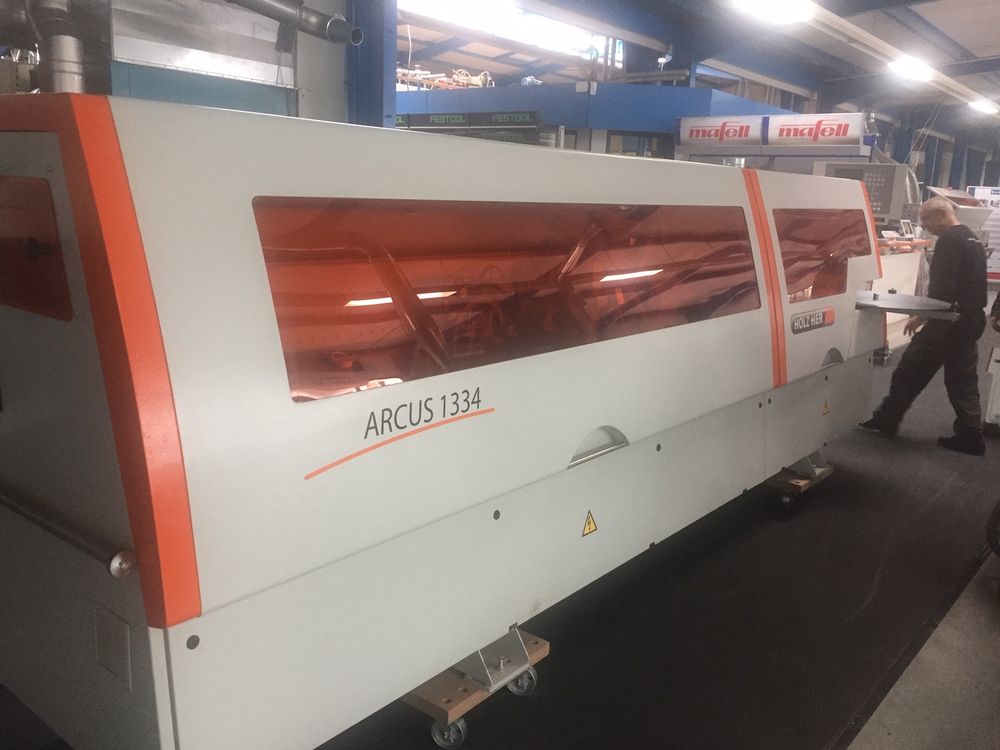

Holz-Her Arcus 1334

Used machine
Condition: Excellently overhauled!
Continuous feed rate 10-18 m/min
Edge Control 19 with 18.5" color touchscreen
Joining trimming unit 1802
Edge feeder 1901
Adhesive application station 1906MG cartridge, tactile nozzle with automatic glue height adjustment
Pneumatic pressure unit 1913
Trimming unit 1918

Multifunctional trimming unit 1826 MOT 6 with 6 servo axes for flush, radius, and chamfer trimming
Copy trimming unit 1983
Radius scraper unit 1929 with pneumatic adjustment (retrofitted; see image)
Surface scraper 1964
Workpiece thickness 6-60 mm
Edge thickness 0.4-8 mm
Min. workpiece width 60 mm
Shortest workpiece length 180 mm
Total length 5195 mm
Extraction connection 180 + 80 mm, 2100 m³/h
Compressed air connection 6 bar / 327 NL/min
Weight approx. 2200 kg
