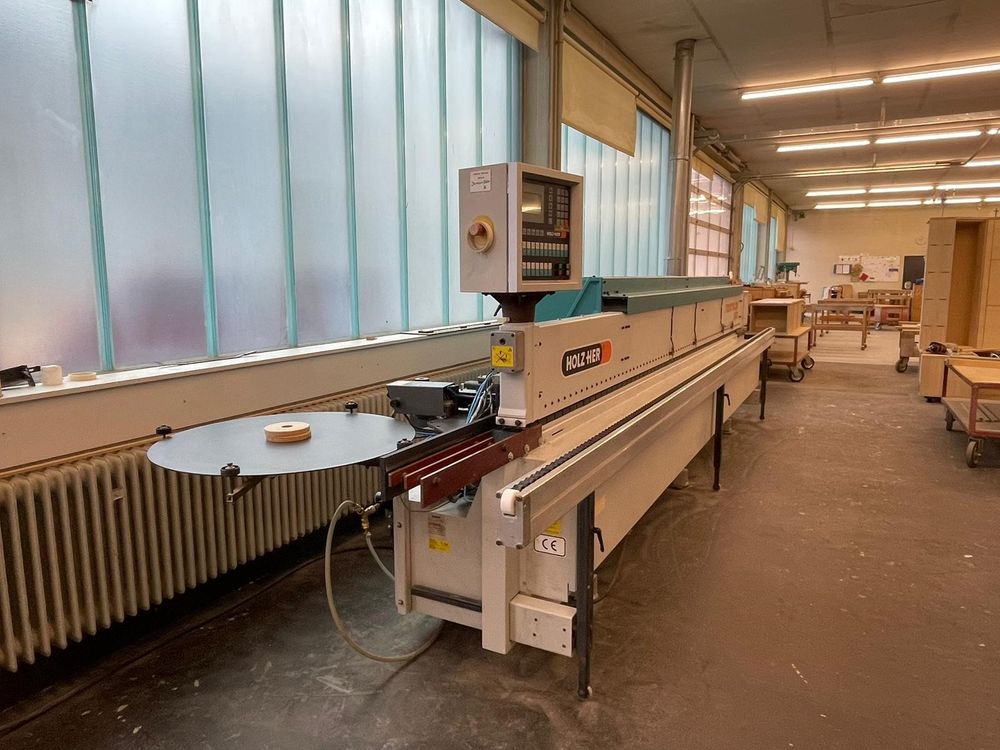

Holz-Her Triathlon 360

Used machine
Condition: well-maintained

Features and technical data:
Machine with PLC control
Feed speed: 12/16 m/min
Edge feeder for roll and strip material, automatic (1901)
Adhesive cartridge (1906) with sensing nozzle
Pneumatic printing unit, motorized adjustment for edge thickness (1926)
Two-motor trimming unit, pneumatically swiveling (1918)
Fixed milling unit up to 30 mm (1962)
MOT 5 milling unit with multifunction: flush, radius, chamfer (1966)
Radius scraper (1927)
Corner copying (1983)
Surface scraper (1964)
Buffing unit (1944)
Blow nozzles

Technical data:
Workpiece thickness min./max.: 6/60 mm
Workpiece width min.: 60 mm
Workpiece length min.: 140 mm
Maximum edge banding thickness: 13 mm
Weight: 1350 kg
Machine dimensions: 5850 x 1000 x 1750 mm
