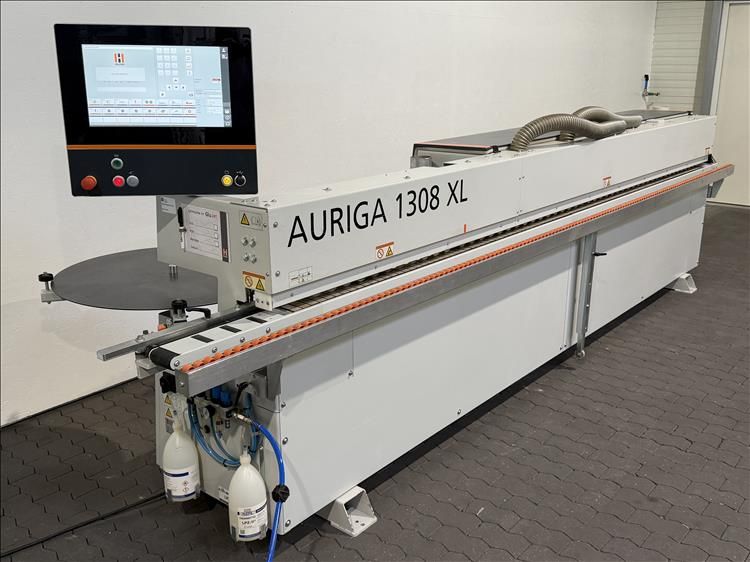

Holz-Her Auriga 1308 XL

Edge banding machine used
PC control with screen,
Touchscreen,
Swivel control panel,
Program memory,
Automatic pressure bridge adjustment,
Feed via transport chain,
Extendable workpiece support,
Diamond jointing cutter in co-rotation and conventional milling,
Strip magazine,
Standby function,
Glu Jet cartridge system,
Cartridge system with sensing nozzle,
Use of PUR adhesives possible,
Printing unit with driven roller,
Pneumatic control of the printing unit,
Crosscut saw with 2 HF motors,
Pneumatically swiveling crosscut saw,
Flush/radius milling unit,
Motorized positioning control of the milling unit,
Diamond-coated milling tools,
Blow nozzle on the milling unit,
Corner copying unit with diamond-coated cutter,
Blow nozzle on the radius scraper,
Surface scraper,
Blow nozzle on the surface scraper

Technical Data :
Edge thickness of roll material: 3 mm
Edge thickness of strip material: 5 mm
Workpiece thickness: 60 mm
Min. workpiece length: 160 mm
Feed speed: 10 m/min.
Distance between workpiece support: 480 mm
Support plate diameter for edgebanding material: 800 mm
Cut-off blade for roll material up to: 3 mm
Heating time: 3.5 min.
Power of jointing cutter: 0.8/1.2 kW
Power of miter saw: 2 x 0.45 kW
Power of milling station: 2 x 0.65 kW
Power of corner copying: 0.3 kW
Power of buffing wheel: 2 x 0.09 kW
Dust extraction port diameter of jointing cutter unit: 2 x 80 mm
Dust extraction port diameter of miter saw: 2 x 70 mm
Dust extraction port diameter of milling unit: 100 mm
Extraction port Ø scraper unit: 120 mm
Compressed air connection: 6 bar
Overall length: 5,000 mm
Dimensions (L x W x H): 5,000 x 1,250 x 1,720 mm
Weight: 1,300 kg
