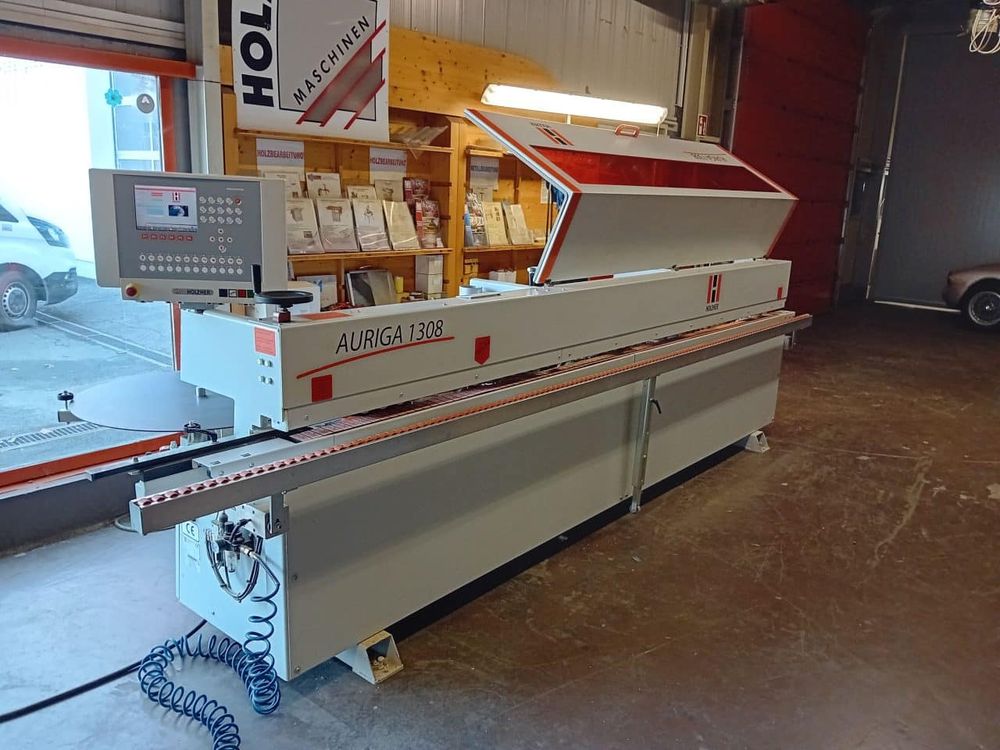

Holz-Her Auriga 1308 FÜ + PU

Compact design – edge thickness 0.4 – 6 mm
PLC screen control Edge-Control PPC 221 color screen
Pre-milling unit for attaching before the gluing part
Fully automatic edge magazine for roll and strip material
GLU-JET adhesive application station EVA and PUR adhesive cartridge or granules + PU
Adhesive application via nozzle technology
Workpiece height 6-65 mm
Automatic Glue height adjustment
Pressure unit 1912-3 pneumatic
Cut-off unit 1918 pneumatic for roll and strip material up to 8 mm edge thickness
with pneumatic changeover from 0-10° bevel of the cut-off saws
Milling unit 1827 MOT 4, flush trimming 8 mm, radius milling – chamfer milling – 15° 1827 MOT NC axes via control panel
Form milling unit 1832 SPS rounding of corners up to edge thickness 3 mm in one pass
Scrape-off unit for chamfers and radii with 2 scraper holders MOT
Surface scraper unit – finish
Spraying unit – PU
Complete DIA tool set incl.
Low operating hours / from a small workshop
Machine is workshop overhauled in top condition
