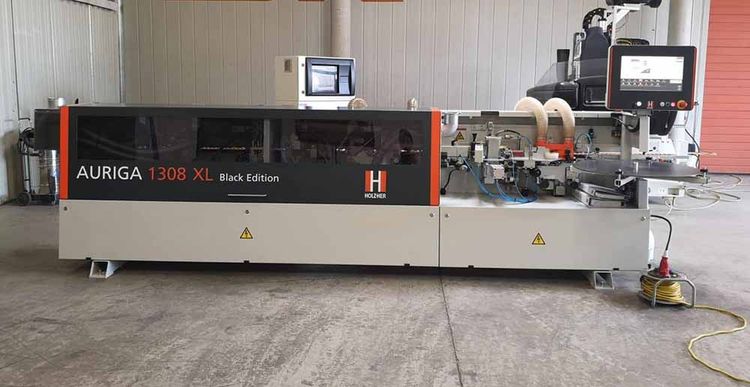

Holz-Her Auriga 1308 XL Black Edition

Ref : 2730556-15-MT
Condition : Used
Manufacturer : Holz-Her
Model : Auriga 1308 XL Black Edition
Year(s) : 2018
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

Compact design – edge thickness 0.4 – 8 mm
PLC screen control, edge control, VGA color screen, 18.5-inch touchscreen
Pre-milling unit for attaching before the gluing section
Fully automatic edge magazine for rolls and strips
GLU JET cartridges + PU gluing station
Fully automatic unit operation via NC servo axes
High-gloss package with NC servo axes
Workpiece height 6-60 mm
Automatic Glue height adjustment
Pneumatic pressure unit
Pneumatic cross-cutting unit for rolls and strips up to 8 mm edge thickness
With pneumatic adjustment of the cross-cut saws from 0-10°
Milling unit, flush trimming 8 mm, radius trimming – chamfer trimming via NC axes
Profile trimming unit – rounding of corners up to 3 mm edge thickness in throughfeed via NC axes
Scraper unit for chamfers and radii with 2 scraper holders via NC axes
Pneumatic engagement and disengagement
Surface scraper unit – finishing
Buffing unit – polishing
Spraying device for infeed and outfeed area
Complete DIA tooling included
Machine as new – built 2018/19 – from lease
