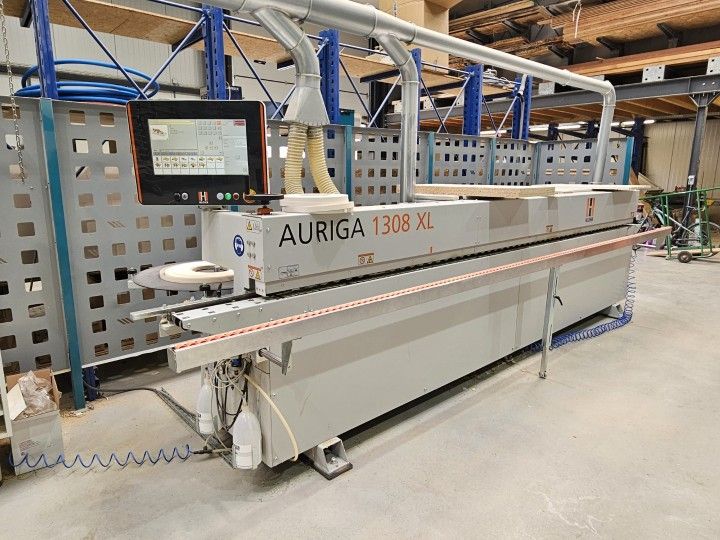

Holz-Her Auriga 1308 XL

Used machine
Features and technical data:
- Basic machine with manual pressure bridge adjustment
- Extendable workpiece support, distance: 600 mm
- Jointing milling unit FG 201 with 2 milling heads including diamond cutters 70 x 48 x 30 mm Z 2
- Edge feeder 1903, single feed, automatic Transport of roll and strip materials
- Glue application system Glu Jet GJ 301 with automatic glue height adjustment (sensor nozzle)
- with magazine for glue cartridges
- Pneumatic printing unit 1912-3, first roller driven with pneumatic plunge control
- End-cutting unit 1918, pneumatically swiveling 0-10 degrees
- Multifunctional milling unit 1827 MOT 4 with pneumatic package including diamond cutters
- Profile milling unit 1832 for corner copying with radius cutter
- Scraper unit 1929 MOT 2
- Chip collection box
- Surface scraper FK 701
- Buffing unit 1940
- Minimum workpiece length (mm) 160
- Workpiece thickness (mm) 6-60
- Edge thickness (mm) 0.4-6
- Feed rate (m/min) 10
- Overall length (mm) 4930
- Weight (kg) 1420
