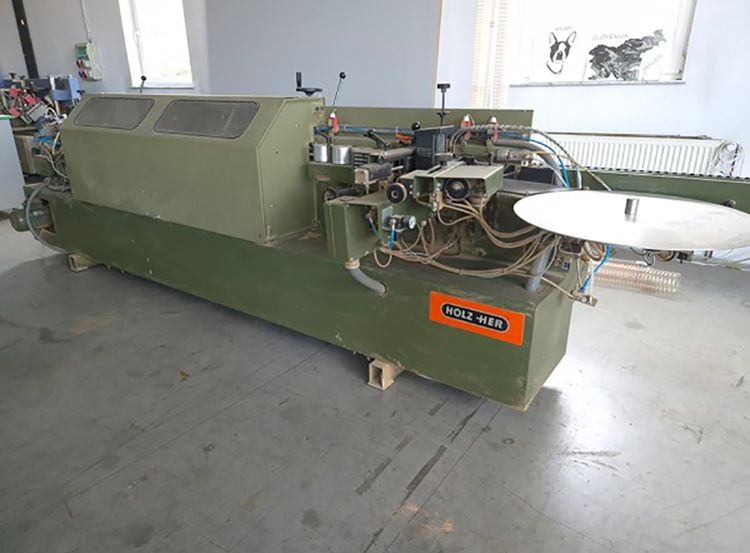

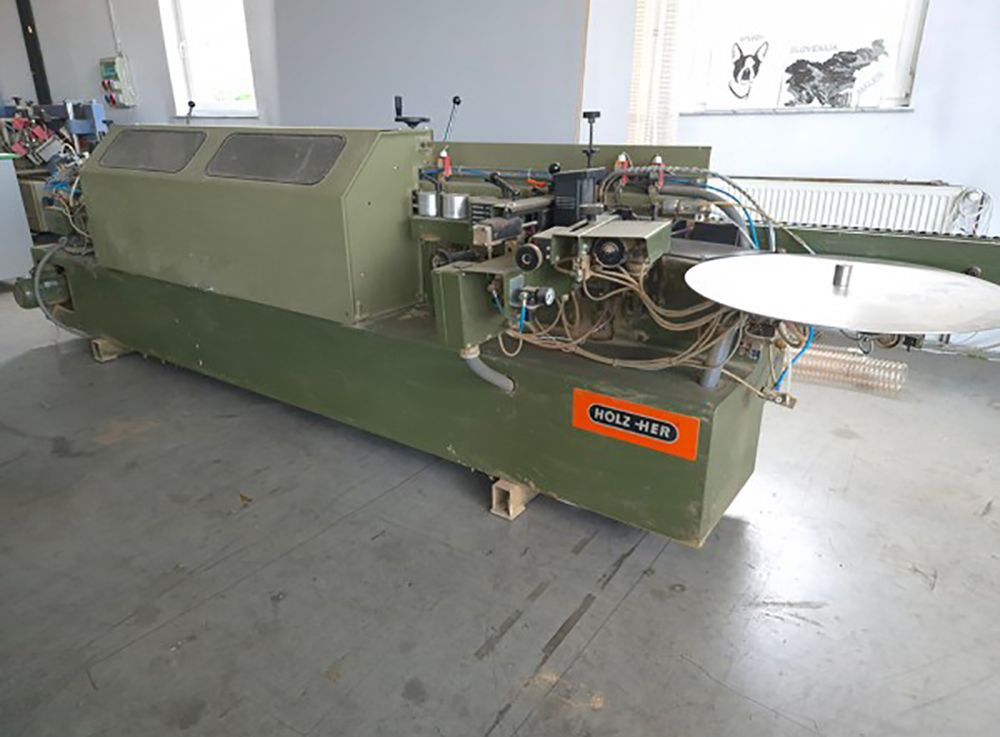

Holz-Her Express 1437
EUROPE (Western and Northern)
Edge glue
Thickness of the edge: 0.2 - 12 mm
Dimensions of the workpiece:
Width min.: 60 mm
Height min./max.: 8/52 mm
Length min.: 160 mm (flats)
Feed speed: 12 m/min
Working height: 880 mm
Compressed air: 6 bars
Diameter of the suction connection: 160 mm
Dimensions of the machine (D x W x V): 4200 x 950 x 1300 mm
Weight: approx. 1400 kg
The equipment includes:
Manual height adjustment
Automatic Magazin for Edge Straps
Application of glue over the diet, patrons, heating time 3 min
Pneumatic trimmers for trimming edges (up to 3 mm)
Double cross saw
Limiters for settlement
Milling cutters for radius of edges
Polishing brushes
