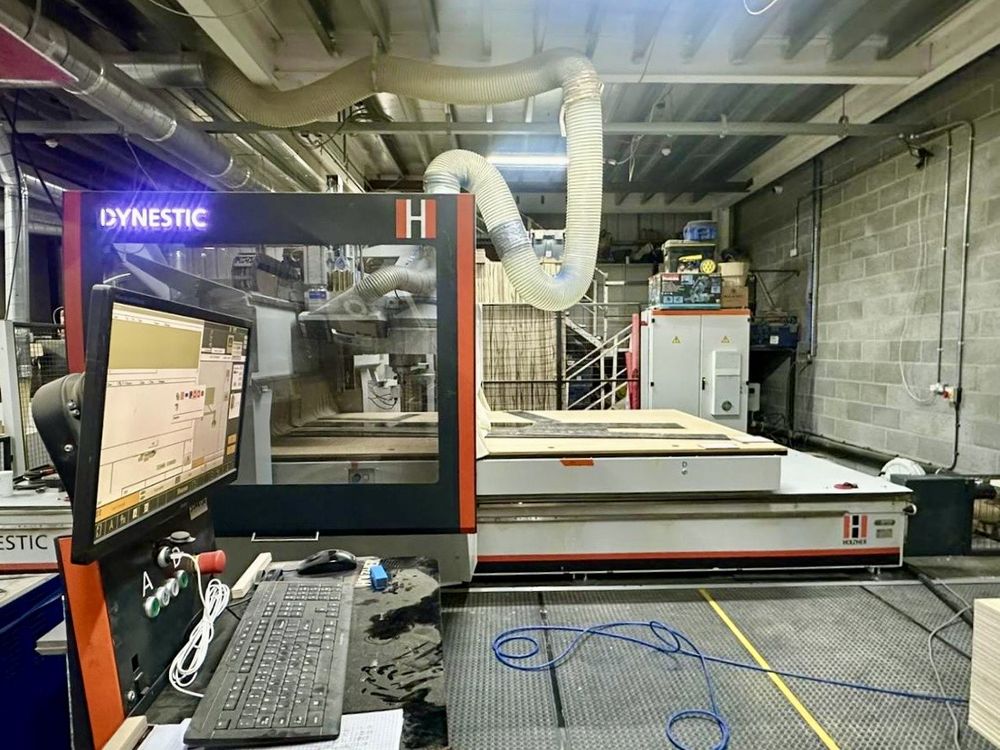

Holz-Her Dynestic 7535

Used CNC Machine
Working Area (X/Y/Z): 3700 x 2100 x 120 mm
Milling Spindle: 5-axis head, 10 kW, 24,000 rpm
Tool Interface: HSK-F63, 18-position tool changer
Additional Tool Holder: Supports saw blade up to 35
Drilling Unit: 10 vertical, 3 horizontal (4 X, 2 Y)
Groove Saw: Integrated in X direction
Construction: Gantry-style, matrix table
Vacuum System: Becker, 250 m%/h
Safety: Zoned safety mats for loading during produc
Air Cushion Table: For handling jumbo boards mani
Tool Measurement: Automatic system up to 20 mm
Control: Beckhoff TwinCAT 2, Windows PC-based
Software: WorkCentre, NC-Hops, Cabinet Control D
Additional: Auto lubrication, cooling
Power: 22 kW | Size: 13.5m x 4.6m x 2.5m | CE
