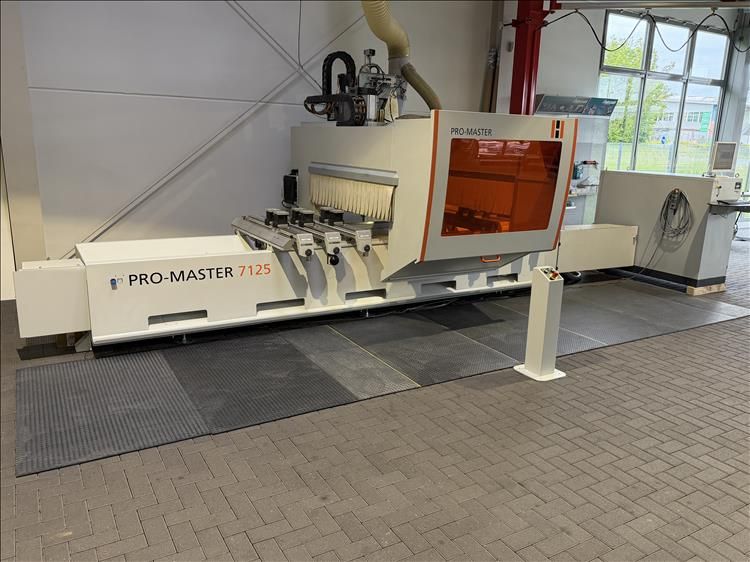

Holz-Her ProMaster 7125

Machining Center - Used
Console machine
additional connections for pneumatic clamps,
pneumatic Workpiece stops with double-acting cylinders,
pneumatic loading aids,
hardened, dust-protected prismatic guides,
helical rack and pinion drive (X-axis),
ball screws on Y- and Z-axes,
network card for remote maintenance,
control cabinet cooling with heat exchanger,
handheld operating unit,
C-axis,
A-axis,
traveling disc tool changer,
incl. safety fence,
incl. safety mats,
pendulum operation possible,
ceiling laser for positioning vacuum/workpiece,
central manual lubrication,
incl. material removal simulation

Technical Data :
Machining length (circumference milling) X: max. 3,605 mm,
Machining length (circumference milling) Y: 1,335 mm,
max. traverse speed X: 100 m/min.,
Max. traverse speed Y: 100 m/min.,
Max. traverse speed Z: 25 m/min.,
Max. workpiece length X: 200 mm,
Machine control software: CAMPUS HOPS,
Main spindle motor power: 9.5 kW (S6),
Main spindle speed: 1,000 - 24,000 rpm,
Main spindle taper: HSK 63,
Spindle cooling: Coolant,
Drilling unit motor power: 3 kW,
Drilling spindle taper: M10, Passitz 11 mm,
Number of vertical drilling spindles: 10,
Number of horizontal double drilling spindles in X direction: 1,
Number of horizontal double drilling spindles In the Y-direction: 1 piece,
Number of consoles: 6 pieces,
Number of tools in the changer: 18 pieces,
Vacuum pump capacity: 140 m³/h,
Suction port Ø: 250 mm,
Required volume flow: 5,300 m³/h,
Required static vacuum: 2,500–3,000 Pa,
Compressed air connection: 6 bar,
Compressed air requirement: 300 l/min,
Dimensions including fence (L x W x H): 6,712 x 4,585 x 2,760 mm,
Weight: approx. 3,800 kg
