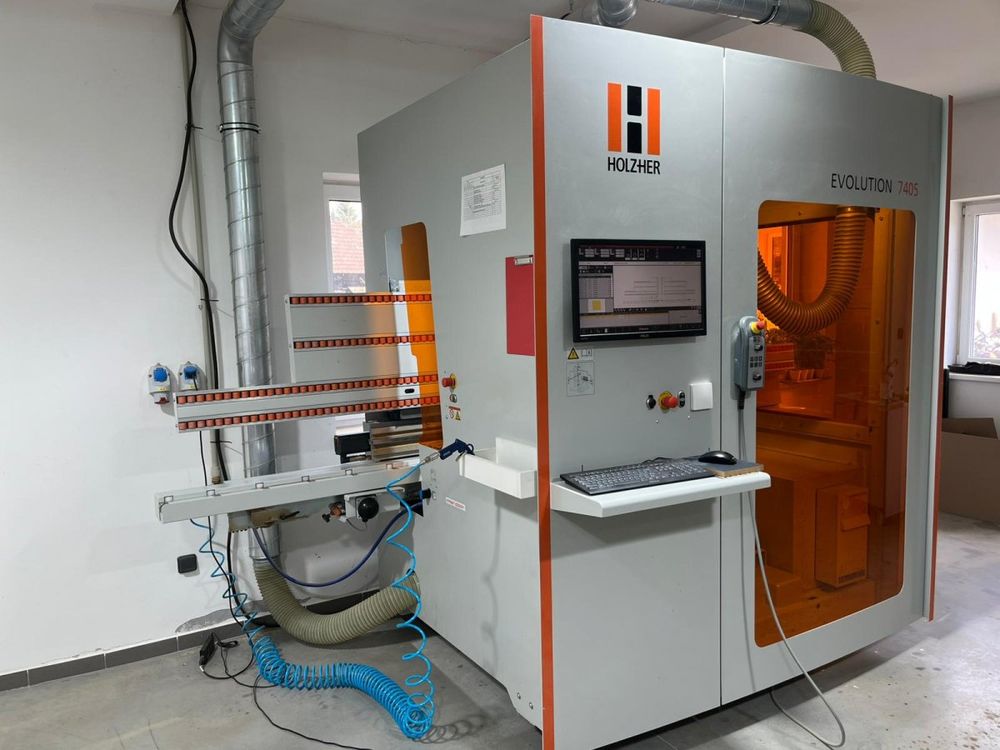

Holz-Her EVOLUTION 7405

Used vertical CNC centres – PRECISION, COMPACT AND FAST
Milling the part around the perimeter from 4 sides, milling shapes circle, ellipse, etc. Making pockets in the area.
Completely equipped for milling of the CLAMEX system.

Equipment:
21.5" 16:9 flat monitor
CAMPUS Software one license uploaded in a machine
Drilling unit 7883 - 1.7 kW - 15 drilling units (for gates and couches)
Electric spindle milling 7830 - 7.5 kW - for clamps with HSK 63F system
Tool tray 7887 – 6 positions
Grooving saw in the direction of the X axis

Working field in X axis 3200 mm
Working field in axis Y 920 mm
Working field in Z axis 70 mm
3 extraction outlets
Weight 2450 kg
