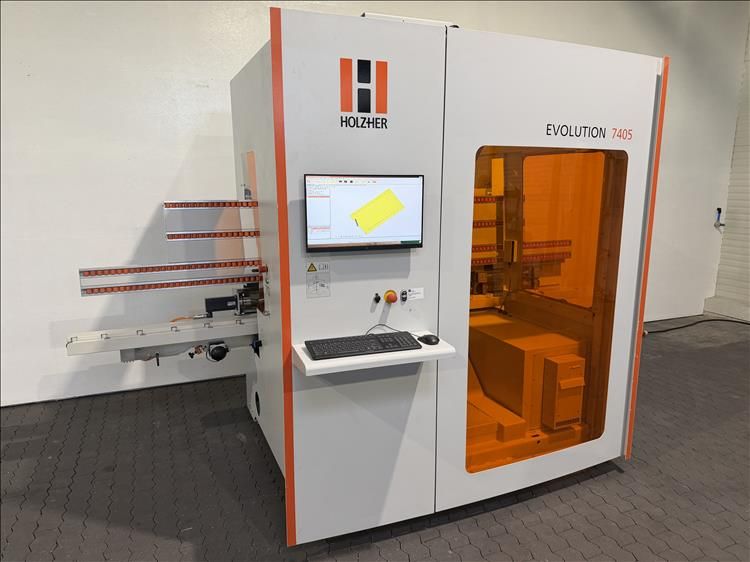

Holz-Her EVOUTION 7405

Machining center - used
Machining in continuous operation,
4-sided milling possible, integrated vacuum pump,
automatic suction cup positioning,
hardened, dust-protected prismatic guideways,
ball screw spindles on all axes, network card for remote maintenance,
integrated control cabinet, control cabinet cooling with heat exchanger,
handheld operating unit, XL drilling head,
sawing unit for grooving in the X direction,
pick-up tool changer, automatic central lubrication

Technical Data :
Min. workpiece length X: 200 mm
Min. workpiece length Y: 70 mm
Min. workpiece thickness: 8 mm
Max. workpiece length X: 3,200 mm
Max. workpiece length Y: 920 mm
Max. workpiece thickness: 70 mm
Machine control software: CAMOUS HOPS
Main spindle motor power: 6.5 kW
Main spindle speed: 1,000 - 18,000 rpm
Main spindle taper: HSK-F63
Drilling unit motor power: 1.7 kW
Drilling spindle taper: M10, 11 mm center-to-center fit
Number of vertical drilling spindles: 13
Number of horizontal double drilling spindles in X-direction: 2
Number of horizontal double drilling spindles in Y-direction: 1
Saw blade diameter of saw unit: 120 mm
Number of tools in tool changer: 6
Dust extraction port diameter: 2 x 120 mm + 1 x 140 mm
Required airflow: 4,100 m³/h
Required static Vacuum: 2,500 - 3,000 Pa
Required air velocity: 30 m/s
Compressed air connection: 6 bar
Compressed air requirement: 300 l/min.
