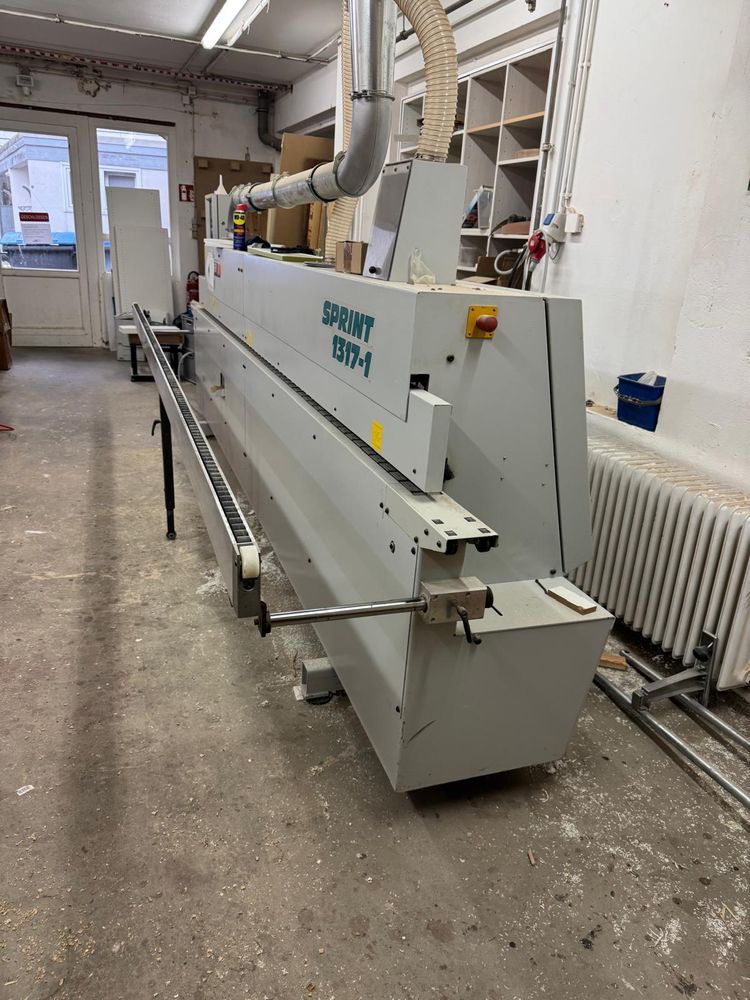

Holz-Her Sprint 1317-1

Used machine
Equipment and technical specifications:
Control with LCD display,
pivoting control panel,
program memory,
manual pressure bridge adjustment,
feed via conveyor chain,
extendable workpiece support,
joining milling unit 1961
2 x 2.0 kW
diamond jointing cutters for up- and down-cutting,
edge magazine 1903
support plate 820 mm, max. loading capacity 40 mm
automatic feeding of rolls and strips
glue application system 1906 cartridge system with tactile nozzle, with automatic reloading
use of PUR adhesives possible,
printing unit 1816 with driven roller,
pneumatic control of the printing unit
trimming unit 1918 2 x 0.22 kW
pivoting from 0 to 10°, pneumatically adjustable
milling unit 1942 MOT 2 for flush, radius, and chamfer milling motor-adjustable
Blow nozzle on the milling unit,
Corner rounding unit 1832
Corner rounding up to 3 mm radius, postforming up to r = 6 mm
Radius scraper unit 1929
Plastic edges up to 3 mm
Chip catcher for radius scraper,
insert-controlled flat scraper 1964
Blow nozzle on the flat scraper
Buffing unit 1940
Spray device for separating and cleaning agent application, complete

Technical specifications :
Edge thickness for roll material: 3 mm,
Edge thickness for strip material: 5 mm
Max. edge thickness for corner rounding: 3 mm,
Workpiece thickness: 6/45 mm,
Workpiece thickness for corner rounding: 45 mm,
Min. workpiece length: 180 mm,
Feed speed: 8 m/min,
Distance between workpiece support: 470 mm,
Support plate diameter for edge material: 800 mm,

Cutting knife for rolled material up to: 3 mm,
Heat-up time: 3.5 min,
Joining cutter power: 2 x 2 kW,
Cutting saw power: 2 x 0.22 kW,
Milling station power: 2 x 0.6 kW,
Corner rounding power: 0.22 kW,
Extraction nozzle for jointing milling unit: 120 mm,
Extraction nozzle for milling unit: 70 mm,
Extraction nozzle for scraper unit: 70 mm,
Total length: 5,350 mm
Dimensions (LxWxH): 5,350 x 1,669 x 1,940 mm,
Weight: 1,200 kg
