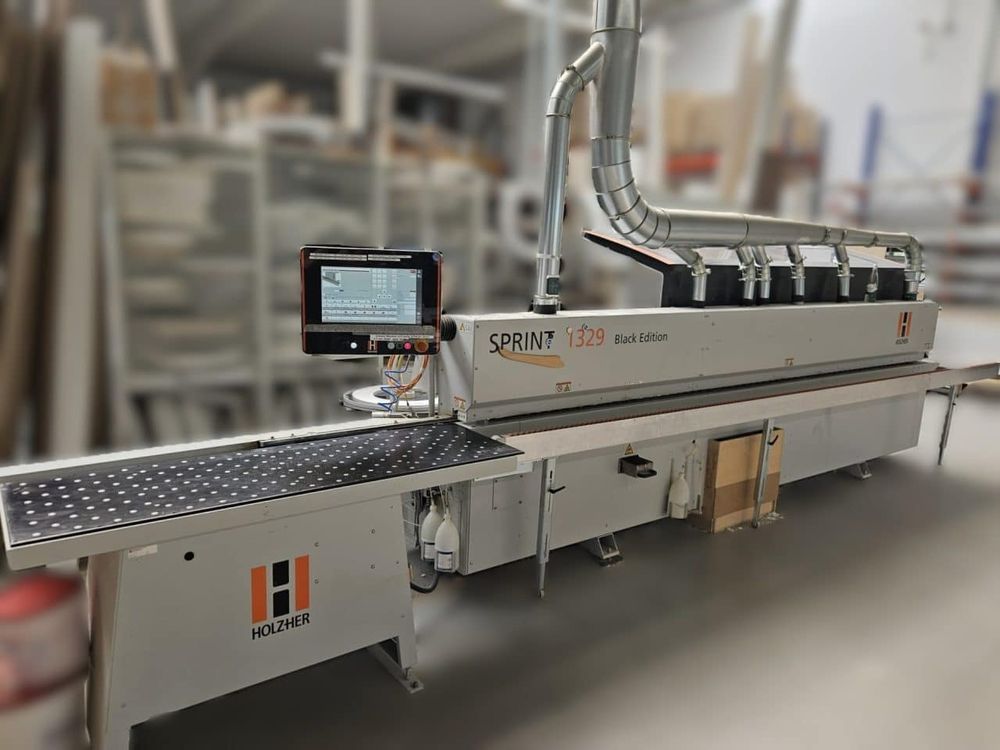

Holz-Her Sprint 1329 Black Edition

Heavy-duty version – edge thickness 0.4 – 8 mm (15 mm with tool change)
18.5" touchscreen control, PowerPC color screen
Motorized, position-controlled bridge height adjustment
Pre-milling unit for attaching before the gluing station
Fully automatic edge magazine for rolls and strips MOT
Glu-JET cartridge gluing station – Granu + PU gluing, thin-film technology
Max. edge height 60 mm
Glue height adjustment / touch nozzle
Motorized-pneumatic 1913 printing unit with NC servo axis
Cross-cutting unit for rolls and strips up to 15 mm edge thickness
With electro-pneumatic adjustment of the cross-cut saw angle from 0-10°
Multifunctional milling unit MOT4 – 4 NC control axes:

Flush milling 8 mm (15 mm)
Radius milling
Bevel milling 0 – 15°

MOT 4 copy milling unit, corner copying, postforming corners with 4 NC control axes, for milling the upper
and lower longitudinal edges and copy milling the front and rear vertical edges, working height 60 mm
MOT 4 scraper unit
Surface scraper unit – Finish
Buffing unit for finishing and edge polishing with 2 textile discs
Spray device for the inlet and outlet areas, as well as antistatic agent for the printing unit
Electronically controlled release agent sprayer for the inlet area
Electronically controlled antistatic sprayer for the printing unit
Electronically controlled cleaning agent sprayer for the outlet area
Air cushion table at the inlet / L = 1800 mm, W = 600 mm
Machine is WORKSHOP OVERHAUL in TOP CONDITION
