Holz-Her Sprint 1329 Power

Heavy-duty version – edge thickness 0.4 – 8 mm (15 mm with tool change)

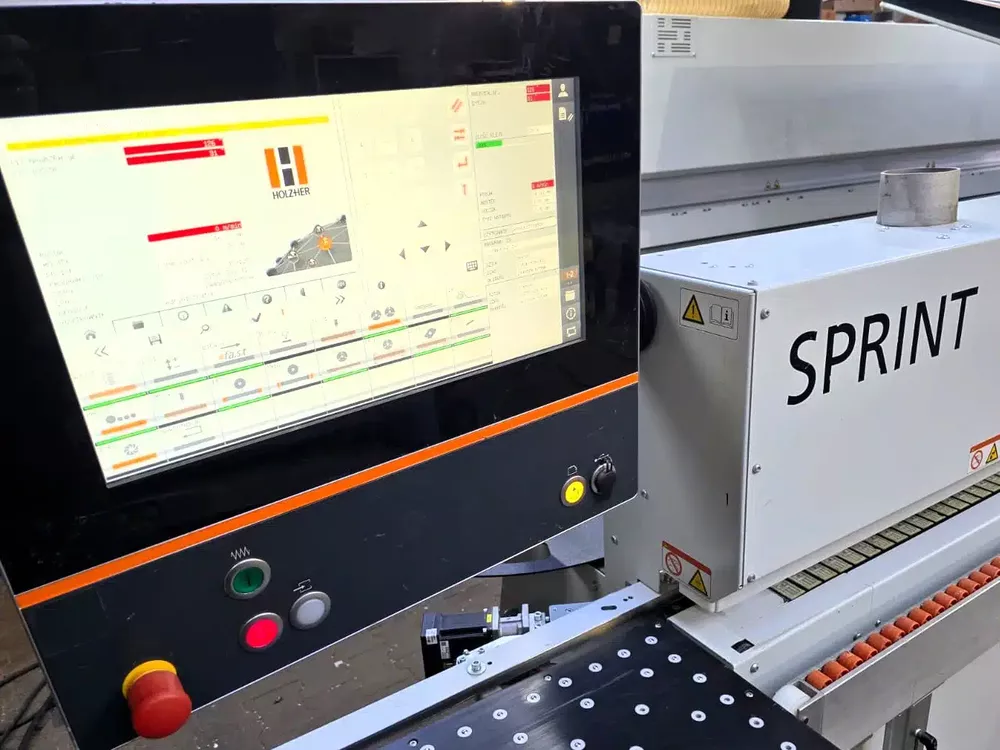

21.5″ PPC 332 Touchscreen Controller
fa.st setting technology “Arming in the gap”
Motorized, position-controlled bridge height adjustment
Edge magazine fully automatic for roll and strip goods MOT
Pre-milling unit for attaching before the gluing station
GLU-JET cartridge adhesive application station – Granu + PU bonding, thin-film technology
Maximum edge height: 60 mm
Glue height adjustment / touch nozzle
Printing unit 1913 motorized pneumatic NC servo axis
Cutting unit for roll and strip goods up to 15 mm edge thickness
with electro-pneumatic adjustment of 0-10° bevel of the miter saws

Multifunctional milling unit MOT6 – 6 NC control axes:
Flush trimming 8 mm (15 mm)
radius milling
Chamfer milling 0 – 15° pneumatic.

Copy milling unit MOT 4 , corner copying, postforming corners with 4 NC control axes, for milling the upper
and lower longitudinal edges and copy milling the front and rear end face, vertical edges, working height 60 mm with shelf program
MOT4 scraper unit
Surface scraper unit – Finish with pre- and post-probing
Buffing unit for finishing and edge polishing with 2 textile discs, swivels 5°
Spray system for inlet and outlet area as well as antistatic agent for the printing unit
Inlet area electronically controlled release agent sprayer
Electronically controlled antistatic spray device
Outlet area of ​​electronically controlled cleaning agent sprayer with cleaning agent
Air cushion table at the inlet / L = 1800 mm, W = 600 mm
First delivery 2022
The machine is workshop-tested and in top condition.
