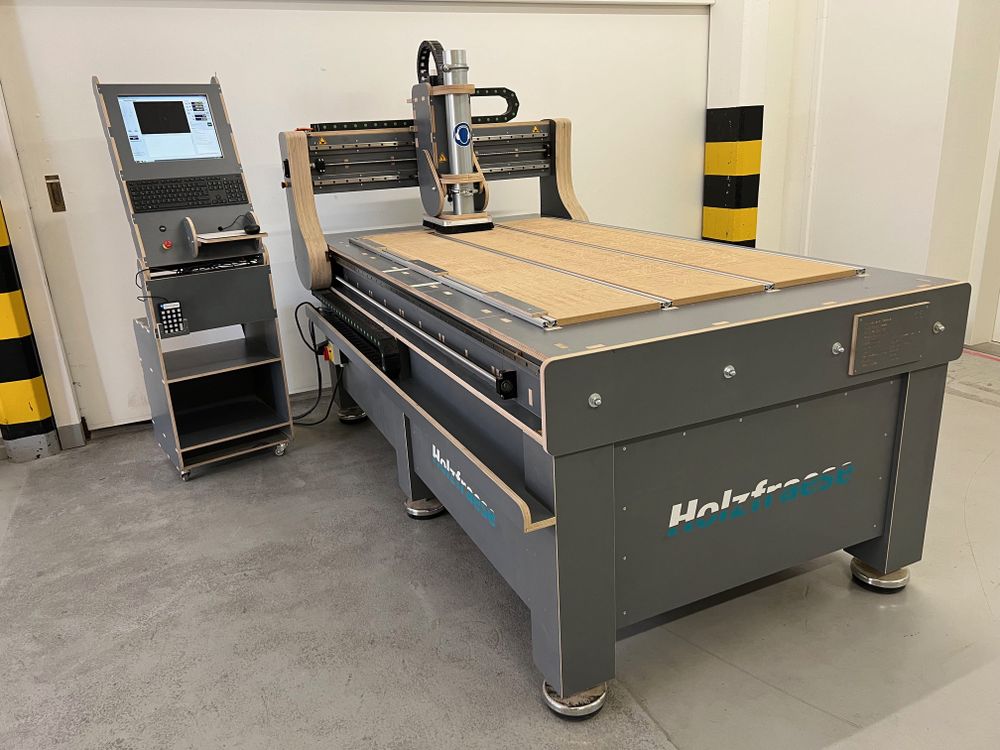

Holzfraese HP 1890

Used machine
Only 110 operating hours!

Equipment and technical specifications:
X = 1800 mm
Y = 900 mm
Z = 80 mm

Made of 18 mm Koskisen panels, consisting of a milling table (X-axis), a gantry (Y-axis), and a Z-axis.
Milling bed made of 19 mm MDF as a sacrificial plate with guide rails and T-nuts for clamping.
Base frame with struts, cast in polymer concrete, prepared for transport by pallet truck or forklift.
Mechanical set consisting of profile guides including guide carriages, as well as 2010 and 1605 ball screws for all axes.
Shaft couplings and high-performance grease for lubricating the individual carriages, as well as energy chains including connection sets.
Control set consisting of a Triple Beast for controlling three axes with Ethernet connection.

Leadshine power amplifier for the fourth motor.
Four stepper motors, 5.0 A, 3 Nm with motor cables, as well as a 48 V, 6.7 A switching power supply,
LED board for the breakout board, ribbon cables and proximity sensors,
small parts such as wire leads, wire end ferrules, control cable, heat-shrink tubing, and cable lugs.
Pre-installed in an aluminum housing including electrical kit and emergency stop.
21.5-inch monitor as a built-in monitor, including a mini PC with Windows 7, Rhino 5.0 CAD software
Estlcam G-code generator, Beamicon2 control software, and a mouse and keyboard, pre-installed in an ergonomic desk.
Tool length sensor for determining the length and changing the active zero offset.

Optional extras:
High-frequency spindle with 2.2 kW, including union nut, frequency converter, line filter, braking resistor, and collet set.
PC with 8 GB RAM and AMD processor
Rhino 5.0 CAD software for creating both simple 2D data and 3D solids
