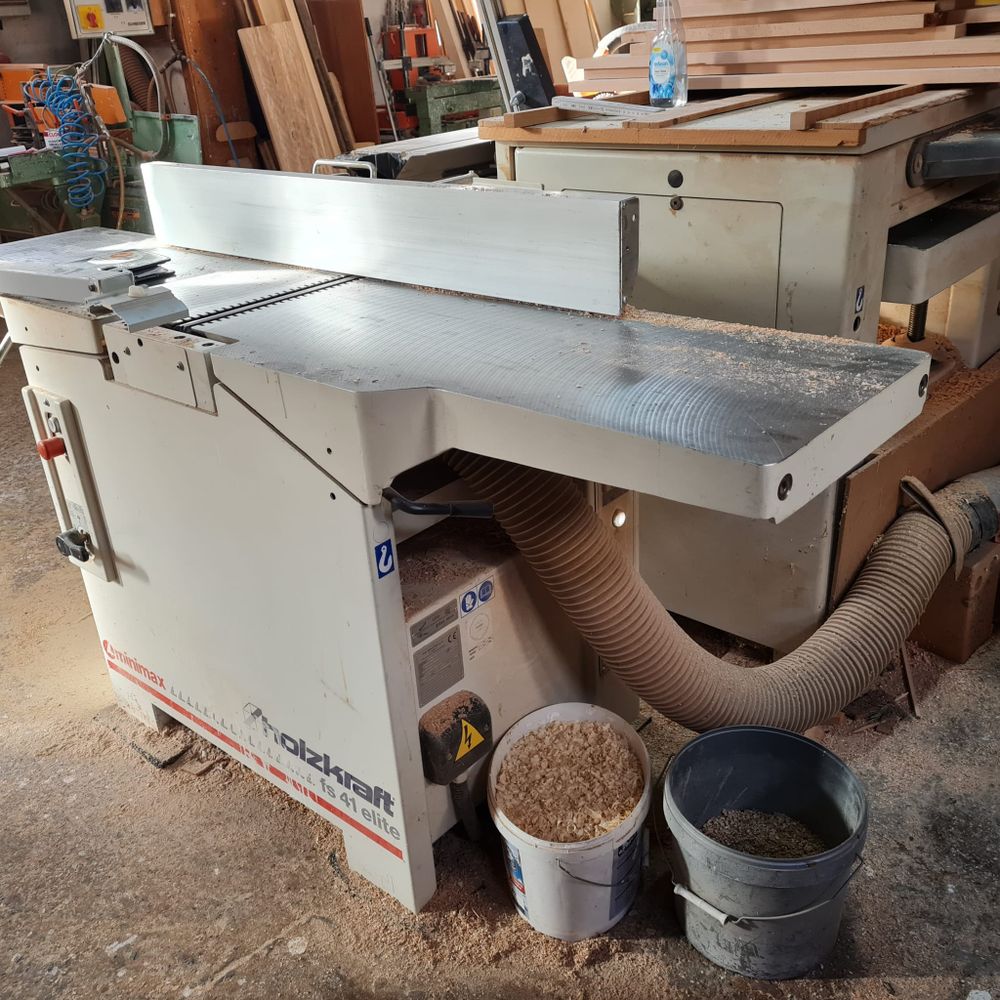

Holzkraft FS 41 elite

Combined planer/thicknesser
Equipment and technical specifications:
Maximum equipment for the professional with Tersa cutter block
With TERSA cutter block for rapid blade changes
TERSA cutter block system enables particularly quiet operation
Helical-toothed steel feed roller for constant and even material feed
Material feed with two speeds via separate motor
The extra-long planing tables enable easy and precise planing of workpieces
Work tables are made of gray cast iron, post-annealed and stress-free, thus robust and permanently flat
Planing tables open simultaneously to the rear for short setup times
Planing thickness table adjustment via handwheel with numerical display for the planing height
The heavy machine weight ensures maximum precision and smooth operation
Powerful industrial motor
Robust steel/gray cast iron construction
Chip removal from just 0.2 mm (at a minimum workpiece thickness of 3 mm)
thanks to the helical-toothed feed roller (ideal for economical planing of (Precious wood)

Features:
Tersa planer knife block
No more adjustments or screwing
Planer knife changes in seconds
Self-locking
Extremely quiet operation
Material feed
Helical-toothed steel feed rollers for constant and even wood feed without marks
Multiple teeth engage simultaneously for powerful feed
Wear-free unlike rubber feed rollers
Permanently mounted extraction hood
Thanks to the permanently mounted extraction hood, reconnecting the extraction hose is no longer necessary during setup. This saves valuable working time
Thicknessing table adjustment
FS 41 elite s with thicknessing table adjustment via handwheel with integrated display
The thicknessing table is mounted on four large spindles, ensuring maximum stability under all working conditions.
Thanks to the special lifting device, the table position is maintained perfectly even without locking.
Kickback guards
Solid kickback guards prevent workpieces from kicking back.
The 4-knife spindle ensures an optimal planing finish.
Anodized aluminum planer fence.
Large dimensions (1200 x 150 mm).
Easily movable.
Tilts from 90° to 45° via scale.

Technical specifications:
Total planer table length: 2000 mm
Planer work table length: 1034 mm
Planer table height: 870 mm
Planer working width: 410 mm
Maximum chip removal: 5 mm
Planer fence dimensions: 1200 x 150 mm
Planer fence pivoting range:
Thicknessing table dimensions: 775 x 410 mm
Min. thicknessing working height: 3 mm
Max. thicknessing working height: 230 mm
Min. thicknessing working length:
Thicknessing feed speeds: 6 / 12 m/min
Planer spindle Speed: 5200 rpm
Planer block diameter: 87 mm
Number of planer blades: 4
Electrical connection: 400 V / 50 Hz
Motor power: 5.0 kW
Dimensions (L x W): 2000 x 1440 mm
Exhaust nozzle diameter: 1 x 120 mm
Weight: 430 kg
