Holzkraft Minimax fs 52es SPIRAL Digital

Surface/Thickness Planer
Used machine

Features and technical data:
- Ideal for demanding craftsmen and carpenters
- The extra-long, one-piece surface planing tables allow for easy surface planing of workpieces
- Worktables are made of cast iron, making them durable and long-lasting.
The back-opening surface planing tables feature tension spring support for quick and easy changeovers.
- Thanks to the permanently mounted dust extraction hood, there's no need to reconnect the extraction hose during changeovers, saving valuable working time.
- The helical-toothed steel infeed roller ensures a constant and even wood feed.
- The rubber outfeed roller in the thicknessing table ensures a smooth wood feed.
- Four-speed material feed
- The thicknessing table is adjusted via a handwheel with an integrated planing height indicator.
- DIGITAL version: with electric thicknessing table height adjustment and digital display.
- On/off switch in operator position
- Powerful industrial motor
- The machine's high weight ensures maximum precision and smooth operation
- Prepared for mortising attachment
- Quality Made in Italy

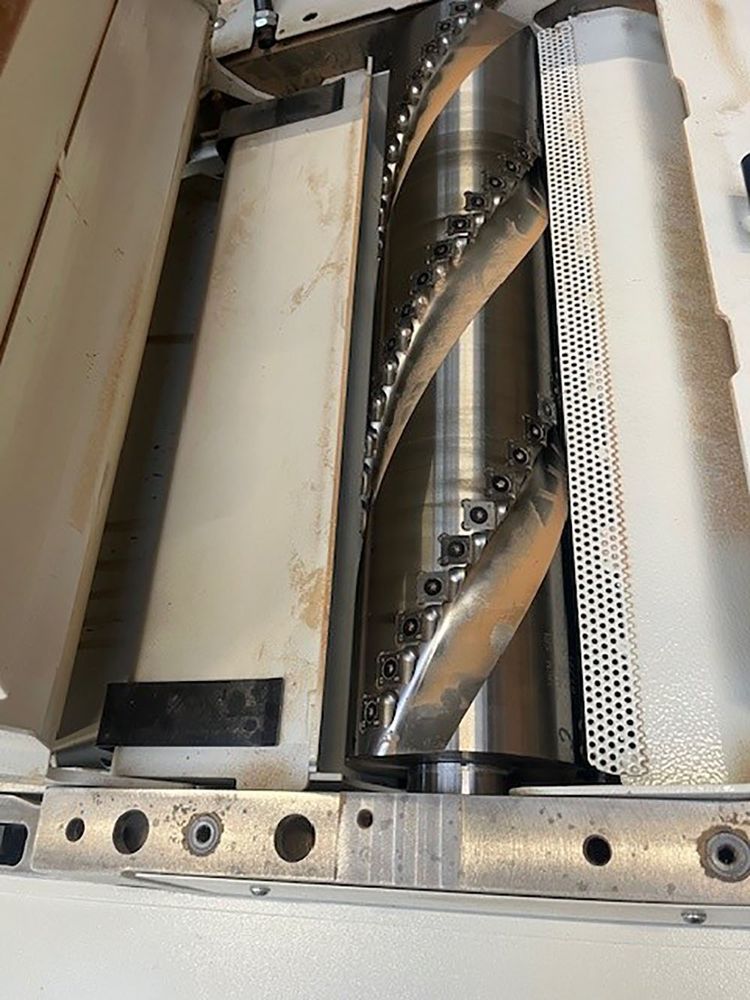

- With spiral cutterhead
- With fold-down cutterhead guard
- Total table length: 2250 mm
- Maximum chip removal: 5 mm
- Working width: 520 mm
- Working height thickness: 3 - 240 mm
- Number of planer knives: 66
- Cutterhead speed: 5000 rpm
- Motor: 9 kW
- Feed speed: 5/8/12/18 m/min
- Dust extraction port: 120 mm
Weight: 695 kg
Dimensions: 2250 x 1440 mm
