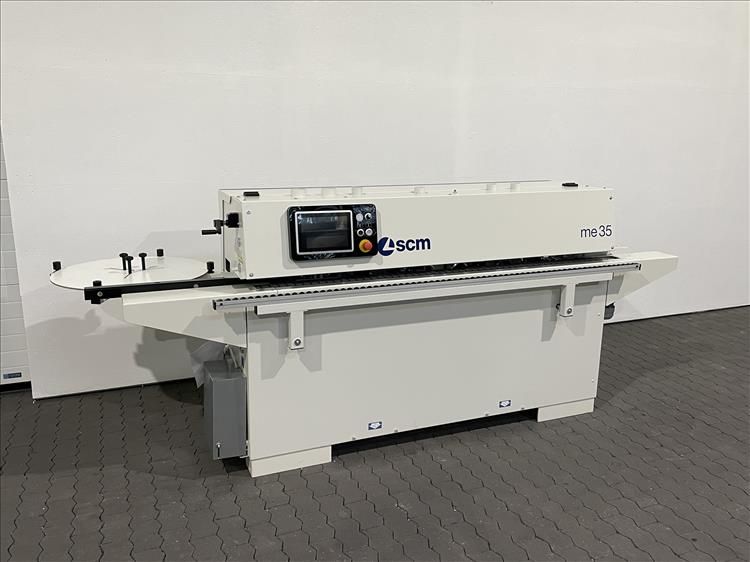

Holzkraft Minimax ME 35 TR S

Edge Banding Machine
- Display Machine

Dimensions and Weights:
- Length (product) approx.: 3314 mm
- Width/Depth (product) approx.: 1085 mm
- Height (product) approx.: 1300 mm
- Weight (net) approx.: 623 kg

Equipment:
- Roller edge banding turntable: 730 mm
- Anti-adhesive spray unit
- Pre-milling unit: with two dia-milling cutters
- Edge preheating device: with ceramic infrared lamp
- Glue container quick-change kit
- Gluing unit
- Corner rounding unit
- Flush radius rounding unit: manually switchable
- Radius scraper unit: manually switchable, with numerical position display
- Flat scraper unit: manually switchable, with rotating rounding device
- Buffing Unit

Flush Radius Trimming Unit:
- Flush Radius Trimming Unit Input Power: 2 x 0.35 kW
- Flush Radius Trimming Unit Cutter Diameter (HM): 55.3 mm
- Flush Radius Trimming Unit Cutter Speed: 12,000 rpm
- Flush Radius Trimming Unit Extraction Outlet Diameter: 2 x 60 mm

Corner Rounding Unit:
- Corner Rounding Unit Input Power: 0.35 kW
- Corner Rounding Unit Tool Diameter: 58 mm
- Corner Rounding Unit Speed: 12,000 rpm

Electrical Data:
- Supply Voltage: 400 V
- Mains Frequency: 50 Hz

Glue Unit:
- Glue Pot Input Power: 0.25 kW
- Glue Pot Operating Temperature: 190 °C
- Glue Pot Extraction Outlet Diameter: 60 mm
- Glue Pot Capacity: 0.8 kg

Pneumatic connection:
- Operating pressure: 6.5 bar
- Air consumption: 470 l/min

Feed:
- Feed input power: 0.55 kW
- Feed speed: 7 m/min

Edges:
- Edge thickness of rolled material: 0.4 – 3.0 mm

Pre-milling unit:
- Pre-milling unit extraction nozzle diameter: 2 x 80 mm
- Pre-milling unit input power: 3 kW
- Pre-milling unit cutter speed: 7200 rpm
- Pre-milling unit diamond cutter diameter: 80 mm
- Pre-milling unit cutter height: 56 mm
- Pre-milling unit material removal: 0.5 / 1 / 1.5 / 2 mm

Scraper units:
- Radius scraper: 2 mm

Buffing unit:
- Buffing unit input power: 2 x 0.14 kW
- Buffing unit speed: 2800 rpm

Workpiece:
- Workpiece thickness: 8 – 50 mm
- Minimum workpiece length: 120 mm
- Minimum workpiece width: 110 mm
