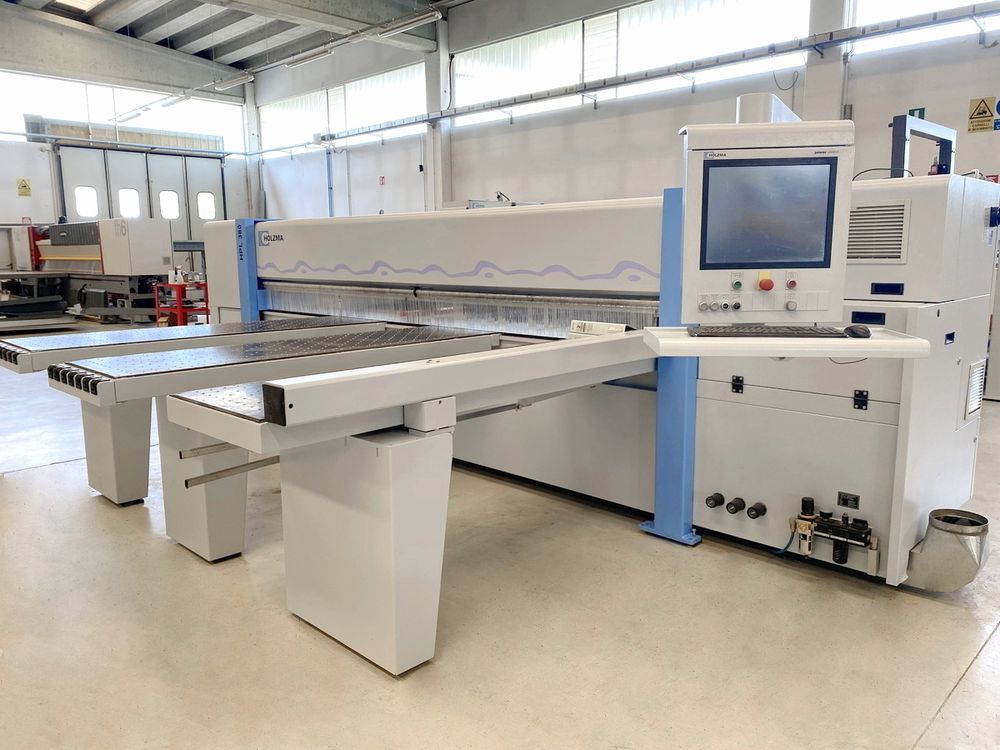

Holzma HPL 380/38/22

Panel Beam Saw - With rear lifting table
Numerical Control POWER CONTROL
Software CADmatic 4 Professional
Lifting scissor table (mm) 3800 x 2200
Rear pushers (N.) 1
With clamps / grippers 7
Turning device (rotating unit) at 90°
Max. cutting width (mm) 3800
Useful stroke of the pushing system (mm) 3800
Max blade projection (mm) 95
Scoring Unit (max saw diameter / power) mm 180 / Kw 2,2
Main Sawing Unit (max saw diameter / power) mm 380 / Kw 13,5
Adjustable speed of the saw carriage (m/min) 1 - 130
Front supporting tables with Air blowing system (N.) 3 (2160mm x 650mm)
Total power (Kw) 28 (ca.)
