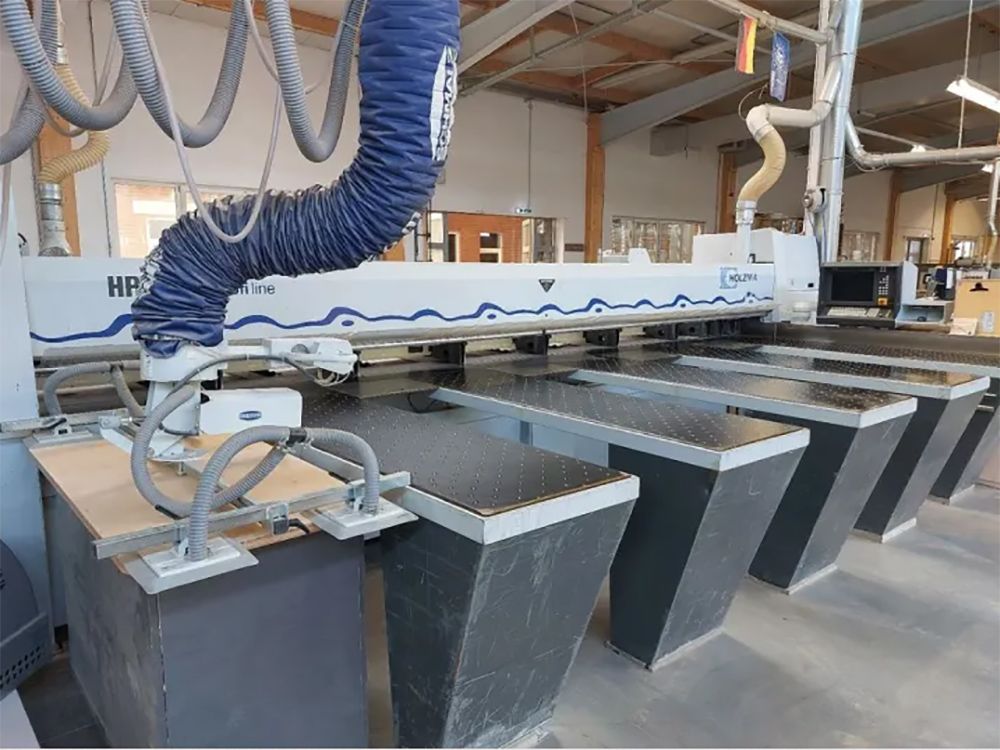

Holzma HPP 11/56

Technical Specifications:
Cutting dimensions: 5600 x 5600 mm
Max. cutting height: 125 mm
Main saw diameter (max.): 450 mm
Motor power: 13.5 kW
Scoring saw diameter (max.): 150 mm
Scoring saw motor: 2.2 kW
Saw carriage speed: adjustable from 10–125 m/min
Slide feed speed: 10–80 m/min
Automatic side pressure device
3 air-sprung loading tables
7 pneumatic clamping devices
CADmatic software
Easy access for maintenance and blade change
Suction requirement: 5000 m³/h

Power and Motors:
Voltage: 400 V
Connection: Three-phase
Total power: 35 kW

Overall Dimensions:
Length: 9500 mm
Width: 8400 mm
Operating hours: 24,400
Single-layer production panel saw
Regular maintenance performed
Machine is already dismantled and stored on-site
