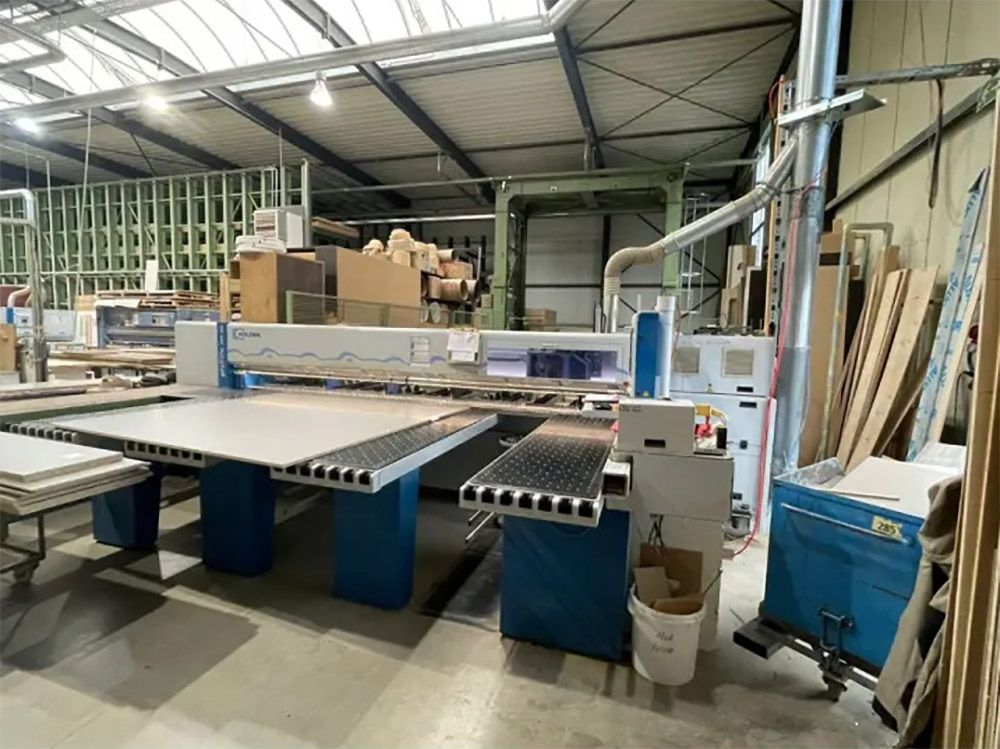

Holzma PROFI HPP 380/43/43

Machine Dimensions:
Approx. dimensions: 13,000 x 6,540 x 2,100 mm

Technical Specifications:
Total connected load: 20.0 kW
Can be combined with automatic material feeding systems
Maximum cutting length: 4,300 mm
Program pusher travel: approx. 10,000 mm
Maximum saw blade projection: 95 mm
Saw blade diameter: Ø 380 mm
Main saw motor power: 13.5 kW
Automatic cutting height adjustment

Scoring / Postforming Unit:
Scoring unit / postforming unit included
Scoring blade diameter: Ø 180 mm
Scoring motor power: 2.2 kW

Feed and Motion Systems :
Saw carriage feed speed: 5 – 130 m/min
Infinitely variable carriage adjustment
Program pusher feed speed: 1 – 25 m/min

Clamping and Table Equipment :
Angular pressure device
Number of clamping grippers: 7
Clamping opening width: 95 mm
Lifting device for grippers
Lifting height of grippers: 290 mm

Automation & Control:
Automatic labeling system
Label printer
90° rotating table for panels up to 4,300 x 2,200 mm
Schuler MDE software for user data acquisition and evaluation
Swiveling operator control panel
