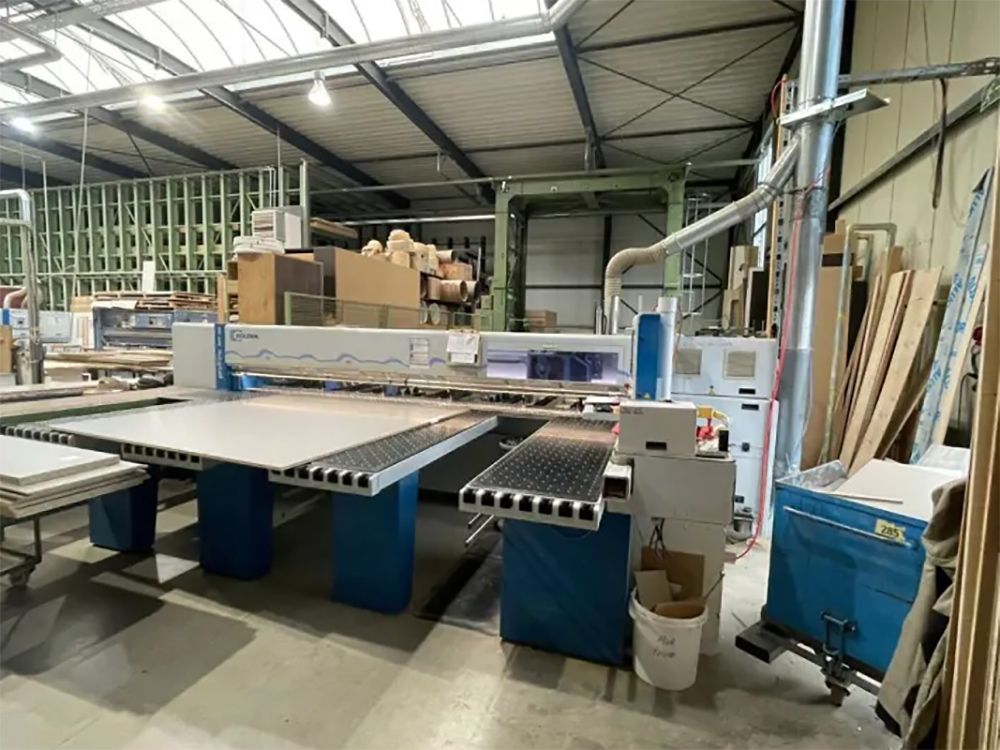

Holzma PROFI HPP 380/43/43

Machine Dimensions: approx. 13,000 × 6,540 × 2,100 mm
Technical Specifications & Equipment:
Total connected load: 20.0 kW
Can be combined with an automatic material feeding system
Max. cutting length: 4,300 mm
Program pusher travel: approx. 10,000 mm
Saw blade projection: 95 mm
Saw blade diameter: 380 mm
Main saw motor power: 13.5 kW
Automatic cutting height adjustment
Scoring unit / postforming unit
Scoring blade diameter: 180 mm
Scoring motor power: 2.2 kW
Saw carriage feed speed: 5 – 130 m/min
Saw carriage adjustment: infinitely variable
Program pusher feed speed: 1 – 25 m/min
Angular pressure device
Number of clamping collets: 7
Collet opening width: 95 mm
Lifting device for clamping collets
Collet lifting height: 290 mm
Automatic labeling system
Label printer
90° rotary table for panels up to 4,300 × 2,200 mm
Schuler MDE software for user data acquisition and evaluation
Swiveling operator control panel
