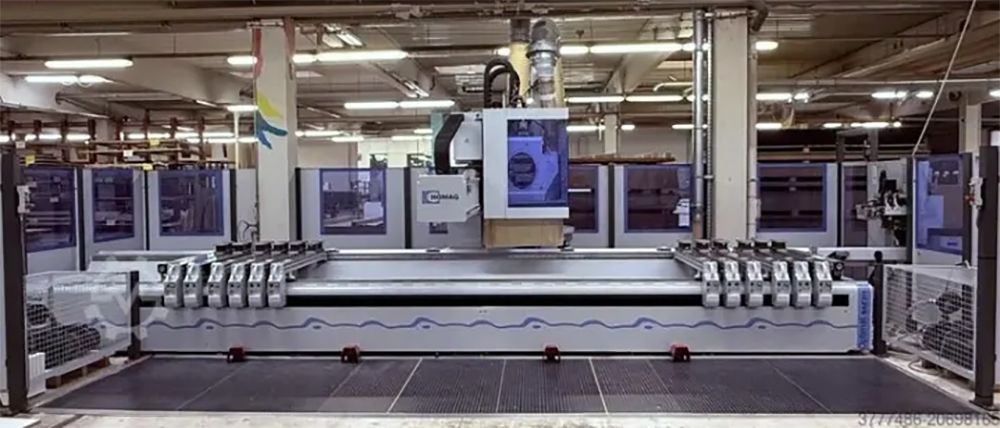

Homag BAZ 211/60/K Venture 21 XXL 4-axis

Technical details:
Workpiece length (max.): 6,175 mm
Workpiece width (max.): 1,550 mm
Workpiece height (max.): 300 mm
Spindle motor power: 18,500 W

CNC Machining Center BAZ 211/60/K Venture 21 XXL with 6 m working length
PowerEdge edge banding unit, renewed vacuum pumps
Windows 10, and WoodWOP 8.1, in very good condition:

– Workpiece length 6000 – 6175 mm
– Pendulum processing 2375 – 2550 mm
– Workpiece width 1400 – 1550 mm
– Maximum workpiece thickness 300 mm
– Working height 950 mm (underside of workpiece)

– Modernization I 2023:
– 2 new rotary vane oil-lubricated vacuum pumps
– Capacity 2 x 63 m³/h = 126 m³/h
– Retrofit kit for separate cooling unit for main spindle

– Modernization II 2024:
– New machine PC with Windows 10 operating system
– Upgrade to WoodWOP 8.1

– 4-axis CNC machining center
– K console table
– 10 consoles incl. front stops
– 6 rear stops
– 6 lift rails
– 2 side stops each left/right/mirrored
– 2 pneumatic connections per machining position
– 2 vacuum connections for templates
– C-axis with aggregate and electronic interface
– Safety device with anti-slip mats

– Main spindle 18.5 kW vector controlled
– Liquid cooling for main spindle

– 10+18-position disc tool changer:
– 10-position disc changer moving with main spindle
– 18-position disc changer moving with X-support

– MPU drilling head 30 spindles V20 / H10 / S360°
– MultiProcessingUnit with C-axis +/- 185°
– 20 vertical high-speed spindles
– 10 horizontal spindles
– Grooving and separating saw 200 mm

– PowerEdge 360° edge banding unit
– Pickup station moving with X-support
– Edge thickness 0.4-3 mm
– Max. edge height 65 mm
– 360° edge banding with butt joint

– Pre-trimming station and single roller for PowerEdge
– Hot air nozzle for edge banding unit

– Combined flush trimming and finishing unit WD 60 mm
– Flush trimming of edge overhangs
– Finishing pre-milled edges
– For use in main spindle
– Probing for compensation of workpiece tolerance
– 2 WPL radius cutter heads
– 2 profile cutters for finishing unit

– C-axis extension for Flex-5 unit
– 10 LED position display systems for consoles
– Optical LED display system
– For positioning clamps and consoles

– 4-fold configuration with 2 x 2 clamping positions
– Separate vacuum systems
– Detachable console for adjustable side stop
– 2 additional side and longitudinal locating pins
– 2 additional clamping consoles 1300 mm
– 2 additional side and longitudinal locating pins
– 2 additional lift rails for console table

– 12 vacuum clamps 160x115x100 mm
– 10 vacuum clamps 125x75x100 mm

– Saw/drill unit with 2 spindles for tool changer
– Saw blade diameter up to 240 mm

– Side wall safety fence (left)
– Rear safety fence
– Side wall safety fence (left)
