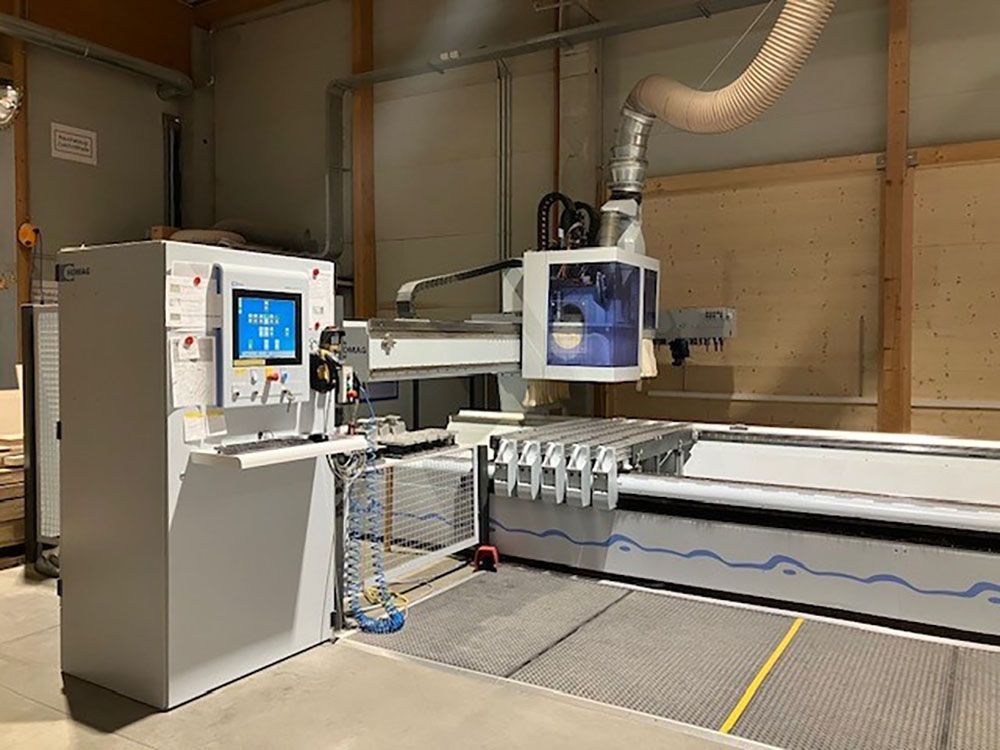

Homag BAZ 311/52

Working range in the X-axis: 5375 mm
Working range in the Y-axis: 1850 mm
Working range in the Z-axis: 300 mm
Electric spindle: 1 pc.
C axis - rotary axis: yes
Tool magazine: 2 pcs. / chain: 72 positions and disc: 5 positions
Vertical drills: 20 pcs.
Horizontal drills: 10 pcs.
Edge banding unit: Power Edge 360° gluing package consisting of a Power Edge gluing unit
WoodWoop 6.0 control.
Number of beams: 10 pcs.
Waste conveyor: yes
Reads CAD formats - DXF: yes
Vacuum pump: yes
CE mark: yes

TECHNICAL DATA:
Milling spindle: 18.5 kW
FLEX 5+ unit
Machining unit: 30 drills / vertical drilling spindles: 20 and horizontal drilling spindles: 10
Grooving and cutting saw
Drilling head: 360° rotation
Milling spindle: 6 kW
Air blower: removes dust from edges
Pre-cutting station and 1-way roller
Combined scraper unit for flush trimming
Automatic edge pressure device for the gluing unit
Control cabinet air conditioning
Laser projection
Barcode system package
