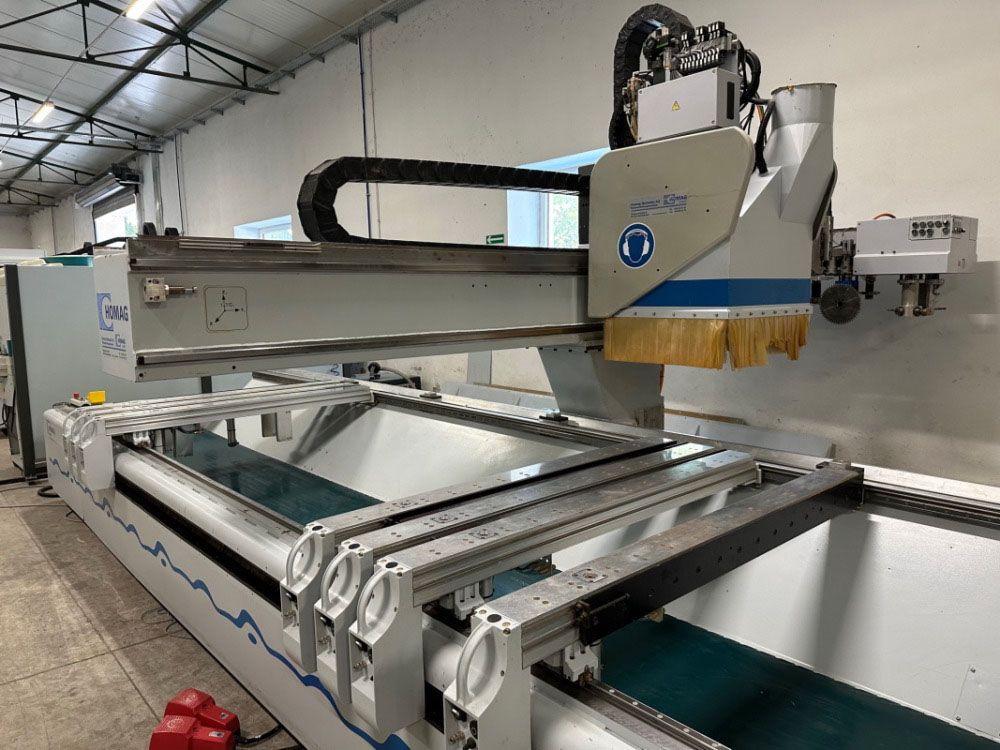

Homag BOF 311/60/PM

Working range in the X axis: 6000 mm
Working range in the Y axis: 1600 mm (1450/1525 mm with front stops)
Working range in the Z axis: 300 mm (80 mm with standard vacuum suction cups)
Electric spindle: 1 pc. // 15 kW
C axis – rotary axis: yes
Tool magazine: 30 positions
Software: WoodWop 6.0 (including WoodWop window/door software (industry-specific program))
Maximum speed: 24,000 rpm
HSK-F63 chucks
Number of beams: 11 pcs.
Waste conveyor: yes
Reads CAD formats - DXF. Yes
Vacuum pump: 2 vacuum pumps, 66 m³/h and 100 m³/h. CE mark: Yes

TECHNICAL DATA:
* Quick-Move system: automatic console positioning in the X direction.
* Extension for the FLEX 5+ unit
* 11 3-stage pneumatic clamping elements for square timber (clamping range 15–120 mm)
* 11 auxiliary clamping elements for mullions and narrow workpieces, pneumatically lowered.
* 12-spindle drilling head: including 6 drilling spindles in the X direction and 7 drilling spindles in the Y direction
