Homag, SCM, Weinig Powermat 500, Windor 40 R, BMG 5-axis

Machines still in operation can be viewed. Sale includes machines, tools, and programming of the systems produced.
Includes angled window and arched window production.

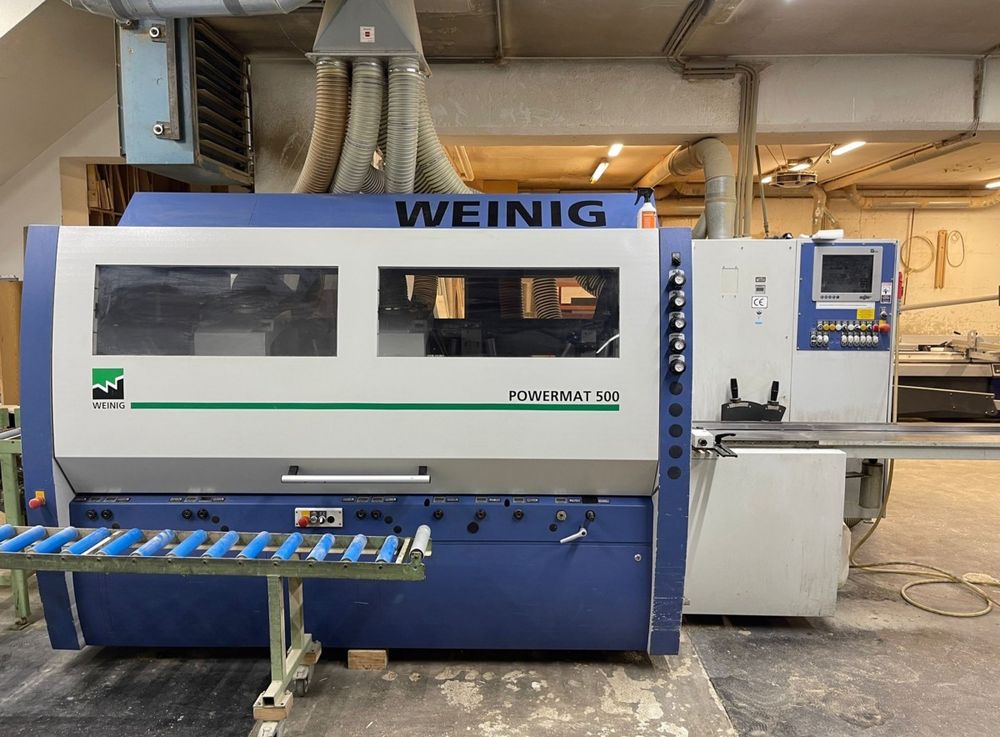

Item 1: Weinig Powermat 500, year of manufacture 2010, window version
- ??6 spindles, 5 of which are PowerLock
- 8,000 rpm
- Equipment for glazing bead removal
- Large PowerCom control system
- Includes existing Leitz planing and molding tools
- Linked to a Maweg Saturn Duo single-piece wood sander, year of manufacture 1985, and a workpiece return conveyor system

Item 2: SCM Windor 40 R window system, year of manufacture 2006
- 2 long CNC-controlled slotting spindles
- 3 long CNC-controlled profile spindles + top and bottom unit
- Rebating carriage for small sashes
- ROTATEN: Angled window attachment
- Includes Leitz window and door tools
- Includes separate OKOMA UF 3 rebating machine with tools

Item 3: HOMAG CNC machining center BMG310/42/F/K, year of manufacture 2018
- Gantry machine, 5-axis Drive 5C+ with 15 kW
- Ceiling laser
- Working dimensions 4200 mm length, 1350 mm depth
- 32-position disc changer
- 8-position linear changer
- Fixed drilling head with 18 spindles V12/H6/S0/90 degrees
- 8 consoles
- 6 lifting rails
- Connection for 8 PowerClamp clamps

- Approx. 30 vacuum clamps
- 4 x PowerClamp clamps
- WoodWop
- Chip conveyor belt
- Various small solid wood clamps, used for casement windows
- Including Leitz tools for Homag with arched window production
- Including Barbaric vacuum lifter, year of manufacture 2015

Item 4: Löwer MZP 1 mini dovetail press
For arched window production

Item 5: S+S frame press type Bavaria 200 L, year of manufacture 2014
- Working dimensions 4000 x 2600 mm
- With center pressure beam and cross pressure device
- Motorized width adjustment
- Basic equipment counter profiles
- Slanted window control
- Pendulum pressure plates + extension for pointed windows
- Intermediate insert for small-scale crimping
- Various carrier plates for counter profiles and counter profiles

Item 6: Striffler sash fitting table
- With automatic screwdriver and screw feeder
- Fitting rack
- Punch for Roto fitting

Item 7: Stegherr KF counter milling machine
- With existing tools

Item 8: Tools
All tools belonging to the machines for the
wood+wood-aluminum systems IV 72 + 92 mm shown in the PDF
- Windows
- Lift-and-slide doors
- Round and angled windows
- Box windows
- Entrance doors in many variations
- Putty rebate variations

Sale of the tools in their current condition, scope, and with accessories as they are currently available.

The following additional machines are also available for sale:
- Range + Heine flood control system with overhead conveyor
- Humidification system
- Hofmann HR 150 slot drilling machine
- 2 Federhenn glazing presses
