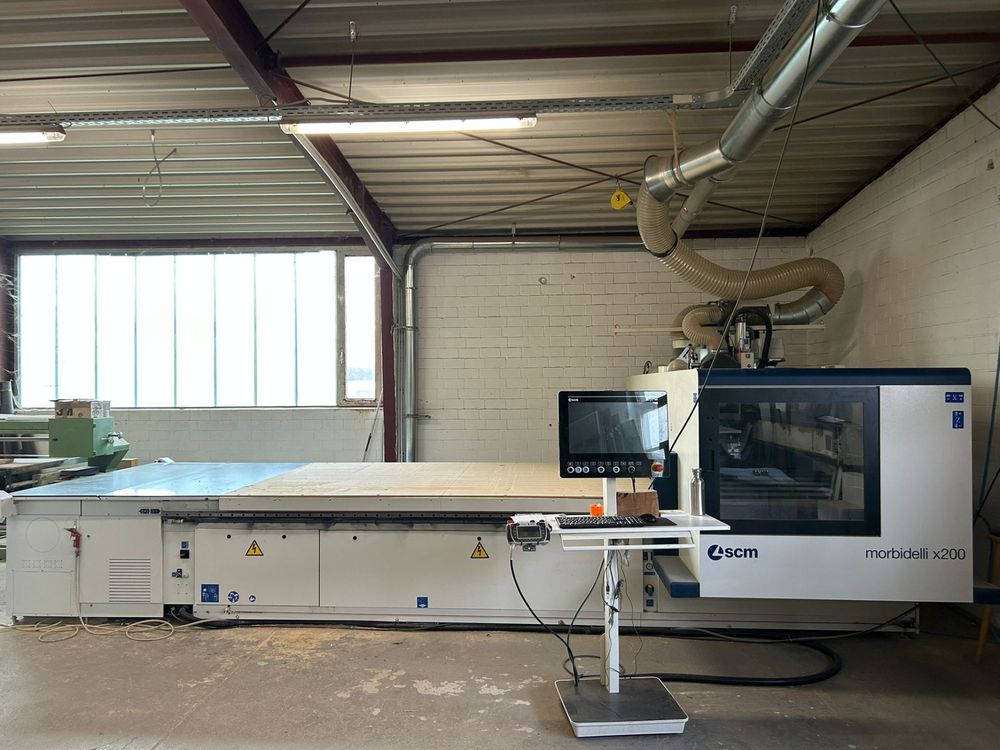

SCM Morbidelli X200

TECHNICAL DATA :
WORKTABLE :
X: Inner fence - Outer table mm inches 3117
122
X: Outer table - Outer table mm inches 3156
124
Y: Inner fence - Outer table mm inches 2177
85.7
Y: Outer table - Outer table mm inches 2216
87
Workpiece length for pendulum machining mm inches 1073
42
Number of standard stops: 5
Z-axis clearance: 150 mm – 5.9 inches
Travel speed per axis 'per space': 84 m/1' - 275 ft/1'
Travel speed per axis 'per speed': 113 m/1' - 370 ft/1'

STRUCTURE :
Type: Movable gantry
Motor drive: Dual X-axis on both sides
Transmission: X-Y rack and pinion
DRILL UNIT - Option -
Vertical spindles up to 21 – 8,000 rpm
Horizontal spindles up to 12 – 8,000 rpm

ELECTRIC SPINDLE:
Power (S6) 3-4 axes from 9.5 kW to 15 kW – 24,000 rpm

INSTALLATION:
Installed power depending on the model
Extraction port diameter 250 mm
Extraction air requirement 4,430 m³/h - 25 m/s
Connection pressure 6.5 bar
Average compressed air requirement 400 l/min
