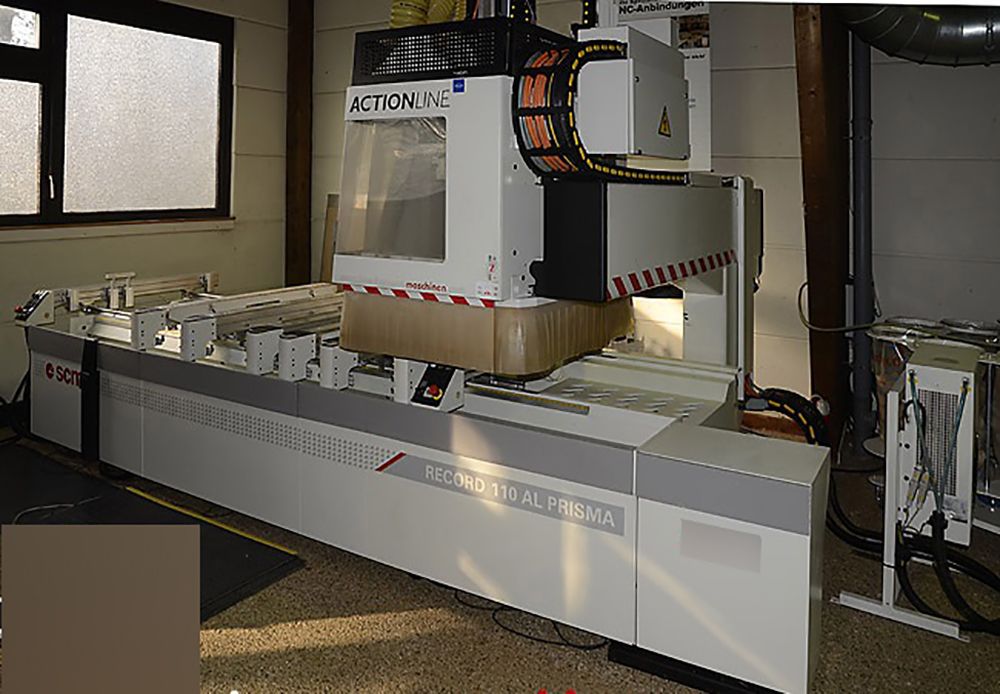

SCM Record 110 TV-Prisma

CNC workcenter with cross table
New HF milling spindle (8.5 kW) HSK with Rapid 16-fold tool changer
Speed 600 - 24,000 rpm
Drill head with 18 spindles
PC control with software
Axis range X, Y, Z = 3,500 x 1,815 x 440 mm
Working range 3,110 x 1,280 x 200 mm
6 crossbars with tubeless vacuum suction cup clamping system with cross laser positioning, tread mat system
Reinforced 250 m3 vacuum pump
HSK holders and tools
Central extraction connection
Installation area 5.000 x 4.600 x 2.980 mm
Control cabinet on the left 600 x .800 mm
