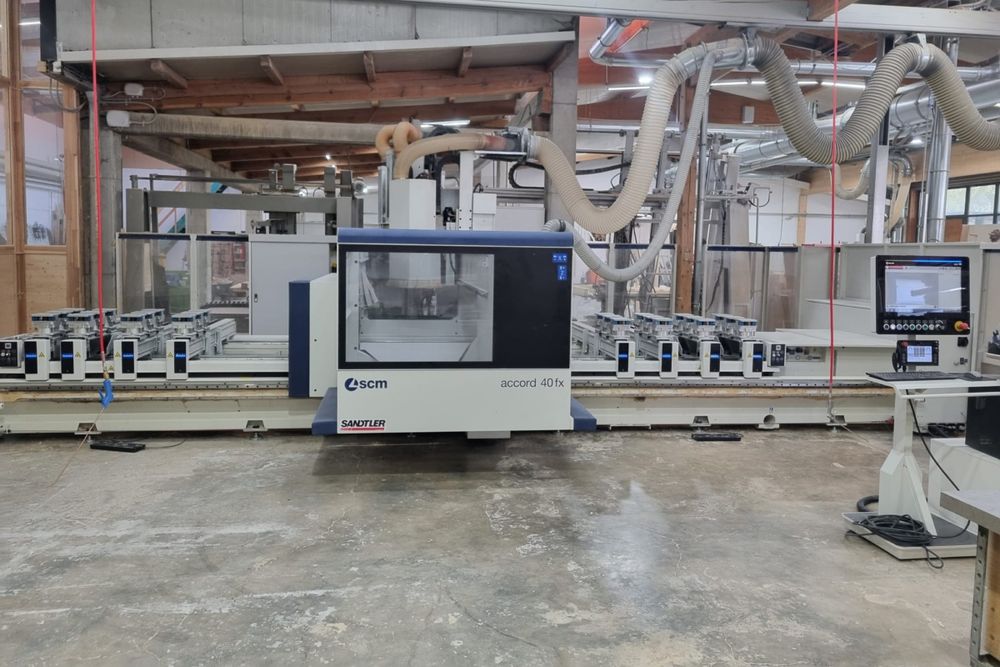

SCM Accord 40 FX with tools 5-axis

CNC Machining Center ACCORD 40 FX for windows and doors
INCLUDES extensive window and door tooling
among others (window cutting available upon request!):
Wooden windows IV 68, 78, 92
Wooden "style" windows
Wood-aluminum windows
Front doors
Lift-and-slide doors
Box windows
Machine still in operation, available for viewing!


Technical Summary (detailed description available upon request!):
- Working area X-Y = 6360 x 1905 Z = 350
- Automatic table with 8 support rails MATIC - L1825
- 5-axis spindle MAXI - Prisma T, HSK 63 E, 13 kW
- RTCP Setting - Self-calibration system for Prisma work unit
- Adjustable chip removal device on the electric spindle
- Preparation for "Prisma T-S" angle gearbox

- BRC - Working unit: Saw blade for face machining,
1 vertical milling cutter connection
3 vertical, independent drill heads, center distance 32 mm
3 vertical drill heads (not independent), center distance 21.5 mm,
for mortise drilling
4 horizontal drill heads (2 per side, not independent),
center distance 21.5 mm
2 horizontal milling heads (1 per (Page)

- TRC 48 - Rear Tool Magazine
48 tool positions (excluding tool holders)
Center-to-center distance between positions: 104 mm
Max. tool diameter: 350 mm
Max. tool length: 320 mm
Max. weight per tool: 10 kg (15 kg with HSK 63 E spindle)
Max. total weight on the magazine: 250 kg

- MACH 5 - Quick-change system: Allows tool changes on the electric spindle in just a few seconds.
- Pendulum operation
- Automatic lubrication of the axes
- eye-M operating console with integrated PC
- Additional fixed control panel
- TECPAD - Remote control of machine functions
- Clamping jaw preparation H145 for worktable with 8 support rails
- Front stop row H110 for worktable with 8 support rails
- Rear stop row H110 for worktable with 8 support rails
- Suction cup H110 145x145 mm
- Swivel suction cup H110 145x55 mm
- Swivel suction cup H110 180x65 mm
- First side stop row H145 for worktable with 8 support rails

Second side stop row H145 for worktable with 8 support rails
Clamp H145 with round base
Clamp H145 with square base
N.6 Lifting devices with double stroke H145
Laser and reference stop H145 for sheet (left)

- PRO-SPEED safety system
- Maestro CNC - Machine operator interface and programming
- Maestro ProView - Simulation software
