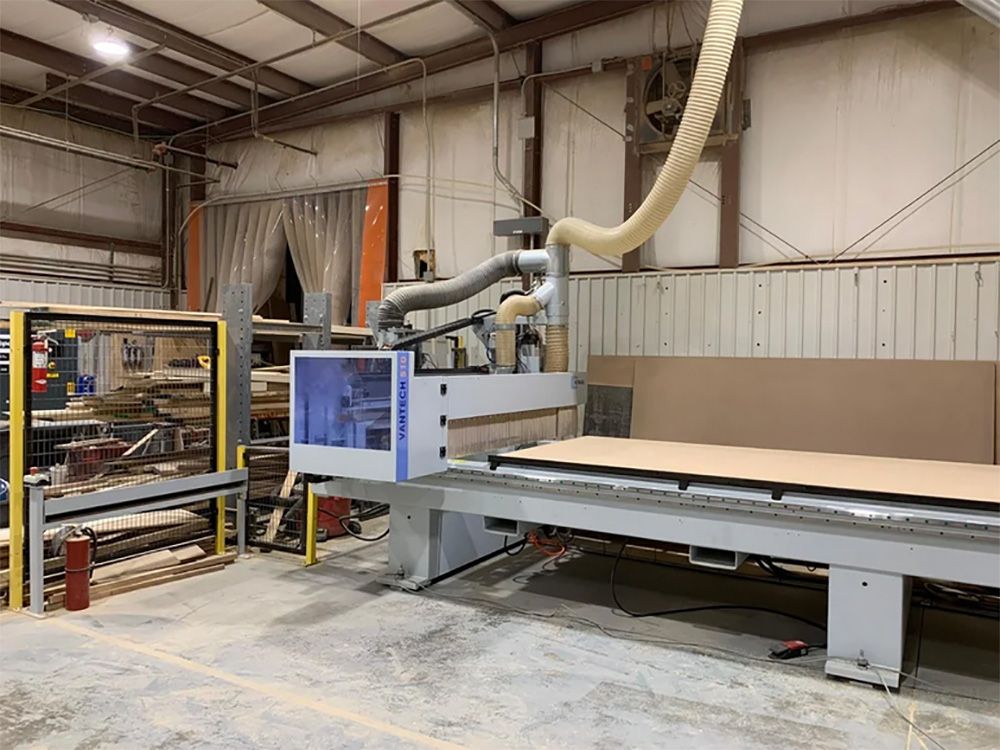

Homag Vantech CNC 510 Half Line

Table: 5′ x 10′
Workpiece Thickness: Max. 100 mm (3.94″)
Vacuum: 2 Pumps (690 m3/h, 60 HZ
Vertical Router Spindle: 13.4 HP
Speed: 1,500 – 24,000 RPM
HP: 13.4 HP
ATC
Tool Holder: Hsk63
Magazine Places: 10 Tool Places
Tool Weight: Maximum 5 Kg (11.02 Lbs.) Including Hsk Cone
Tool Diameter: 135 Mm Max When Equipped With 7 Tools
Tool Loading: via Integrated Pick-up Place at the Tool Changer
Pneumatic Reference Pins: 11
Z- Axsi: 245 mm/9.6″
X/Y/Z Vector Speed: 96/96/25 m/min
Automatic parts pusher with dust collection
Integrated outfeed conveyor with dust Collection
