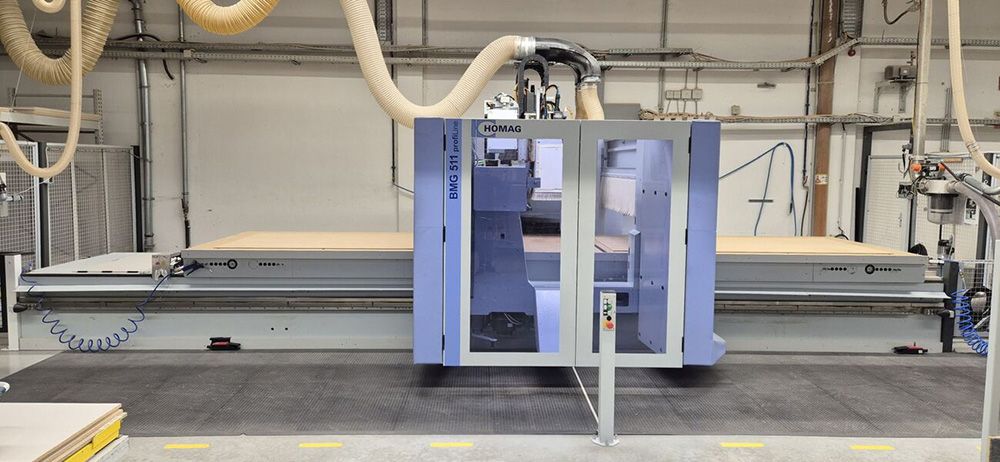

Homag BMG 511/60/12/R

CNC - Nesting machine
Technical data:
- X-axis speed: 80 m/min
- 18-position tool changer
- Drilling head with 30 spindles
- Working area: 6,000 x 1,550 mm

Workpiece parameters:
Length (single setup): 6,000 mm
Length (pendulum operation): 1,550 - 3,200 mm
Width: max. 1,550 mm (with rear stop and milling cutter Ø 25 mm)
Workpiece thickness: 275 mm including clamping devices
Up to 60 mm with standard clamping equipment

Speed Pack:
Increased maximum feed speed of X-axis to 80 m/min

Tool transfer station:
Located on the left side of the machine bed

Disc-type tool changer:18 positions
Capacity for either
18 x 130 mm tool diameter, or
9 x 180 mm + 9 x 70 mm tools
Maximum aggregate length: 320 mm

Main milling spindle:
12 kW (S6 duty) / 9.5 kW (S1 duty)
Frequency-controlled speed: 0 - 24,000 rpm

C-axis:
With aggregate interface
Drive for all units with swiveling axis
Unlimited swivel range

Interface:
For FLEX-5 aggregate

Drilling head (30 spindles):
V20 / H10 / S360° “MPU”
Multi-Processing Unit with C-axis ±185° for drilling and sawing at any angle.
20 vertical high-speed spindles, each with quick-change system
Spindle layout in U-shape:
3 rows with 11, 3, and 6 spindles, spacing 32 mm
10 horizontal spindles:
4 spindle pairs at 32 mm spacing
1 spindle pair at 320 mm spacing

Grooving / Separation saw:
For saw blade diameters up to 200 mm

Base structure - Grid table:
Grid table with slotted aluminum profile

Dynamic table area allocation (R-table):
The machine automatically checks the maximum possible part dimensions based on the program configuration.
Vacuum zones are permanently assigned to machining fields.

Machine control:
POWERCONTROL PC 86 POWERTOUCH
21.5" Full HD multi-touch display
WoodWop software for graphical, dialog-based CNC programming

Vacuum system:
The machine is supplied via a customer-side vacuum system
(No integrated vacuum pump)
