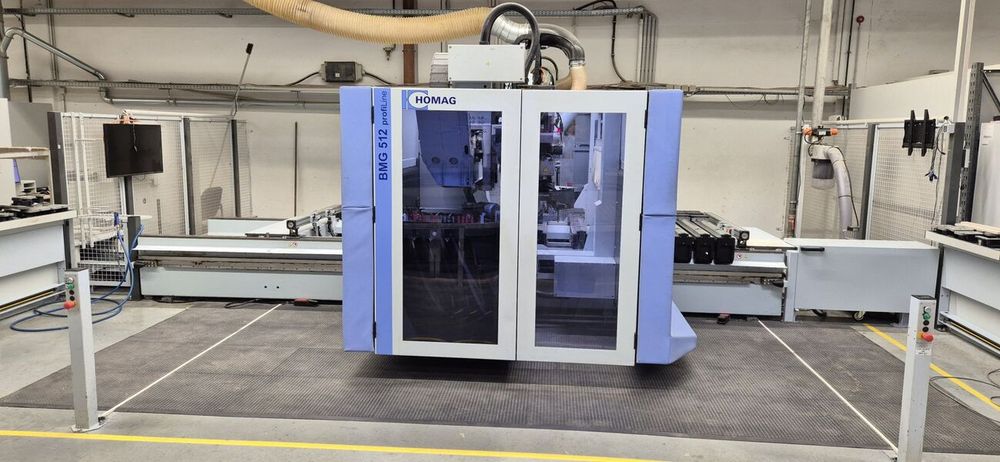

Homag BMG 512/40/12/V/A

CNC - Machining Center
Technical data:
- POWEREDGE gluing unit
- 4-fold edge magazine
- Automatically adjustable console table

Workpiece parameters:
Lengths: 4,000 mm for single placement / 2,250 mm for pendulum placement
Widths: 1,450 mm for all units and front stop
Maximum workpiece thickness: 300 mm (including clamping devices)
Up to 60 mm with standard clamps without restrictions for units and extraction
18-fold disc tool-changer

Processing spindle: 12 kW (S6 operation) / 9.5 kW (S1 operation)
Spindle with hybrid bearings
Frequency-controlled rotation: 0 - 24,000 rpm
Automatic feed reduction with decreasing spindle speed

C-axis with unit interface
Unlimited swivel range

Interface for FLEX 5 unit
Coupling element for C-axis for automatic tool change of FLEX 5 unit

Drilling head: 21 spindles V17 / H4 / S0 / 90°
17 vertical drilling spindles with quick-change system to reduce setup time
T-shaped arrangement: 7 spindles in Y-direction / 11 spindles in X-direction
4 horizontal spindles with saw 0 / 90°

POWEREDGE gluing unit
Gluing unit for 360° edge gluing on butt joints
Glue application via application roller onto edge material
1 pressure roller Ø 50 mm, 1 follow-up roller Ø 35 mm

Max. workpiece thickness: 60 mm / Max. edge height: 65 mm
Edge thickness: 0.4 - 3 mm (veneer 0.4 - 2 mm / PVC 1.0 - 2 mm)

Flexible edge-following control - BAZ software

Hot air nozzle for 360° gluing unit
For heating thick edges on small radii
Operation and power controllable via NC

Pre-cutting station
Moves with the processing portal (X-axis)

4 roller discs
- for roller diameter 780 mm

Saw / trimming unit for tool changer
Combined trimming and corner rounding unit, sensor-controlled
Combined flush-trim / pull-knife unit

Automatic console table
With automatic positioning of consoles and vacuum cups
8 consoles Y = 1,500 mm
16 side and stop pins 140 mm, electromechanically controlled

Dynamic space allocation
Enables optimal utilization of the machine's available processing area in pendulum operation
Various double vacuum clamps
Coolant tank for processing spindle

Without vacuum pump: the machine is supplied via a building-side vacuum system

Machine control:
POWERCONTROL PC 86 POWERTOUCH
With 21.5" Full-HD multitouch display
WoodWOP for graphical, dialog-oriented creation of CNC programs
With diagnostic system WOODSCOUT
Integrated chip conveyor, discharging to the left
