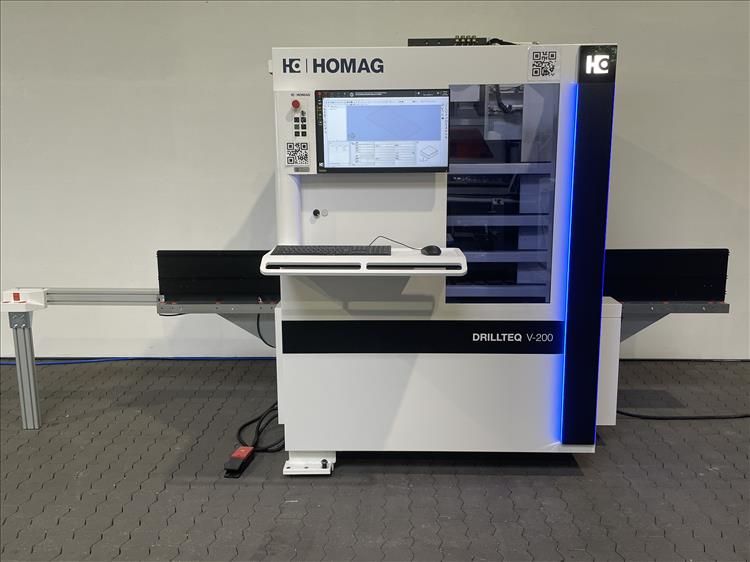

Homag DRILLTEQ V-200

Machining Center
Optimat BHX055 -used-
Throughfeed machining,
Ball screw spindles on all axes,
Network card for remote maintenance,
Integrated control cabinet,
Saw unit for grooving in the X direction,
Pick-up tool changer,
Including barcode reader,
Including CLAMEX tools,
Including 3D simulation,
Including additional woodWOP office license

Technical specifications :
Vector speed (X-Y): 50 m/min.,
Min. workpiece length X: 200 mm,
Min. workpiece length Y: 70 mm,
Min. workpiece thickness: 8 mm,
Max. workpiece length X: 3,050 mm,
Max. workpiece length Y: 850 mm,
Max. Workpiece thickness: 56 mm,
Machine control software: WOODWOP 8,
Screen size: 24-inch touchscreen,
Main spindle motor power: 10 kW (S6),
Main spindle speed: 1,250 - 24,000 rpm,
Main spindle chuck: HSK-F63,
Drilling unit motor power: 2.3 kW,
Number of vertical drilling spindles: 13,
Number of horizontal double drilling spindles in X-direction: 2,
Number of horizontal double drilling spindles in Y-direction: 1,
Saw blade diameter of saw unit: 100 mm,
Number of tools in tool changer: 4
