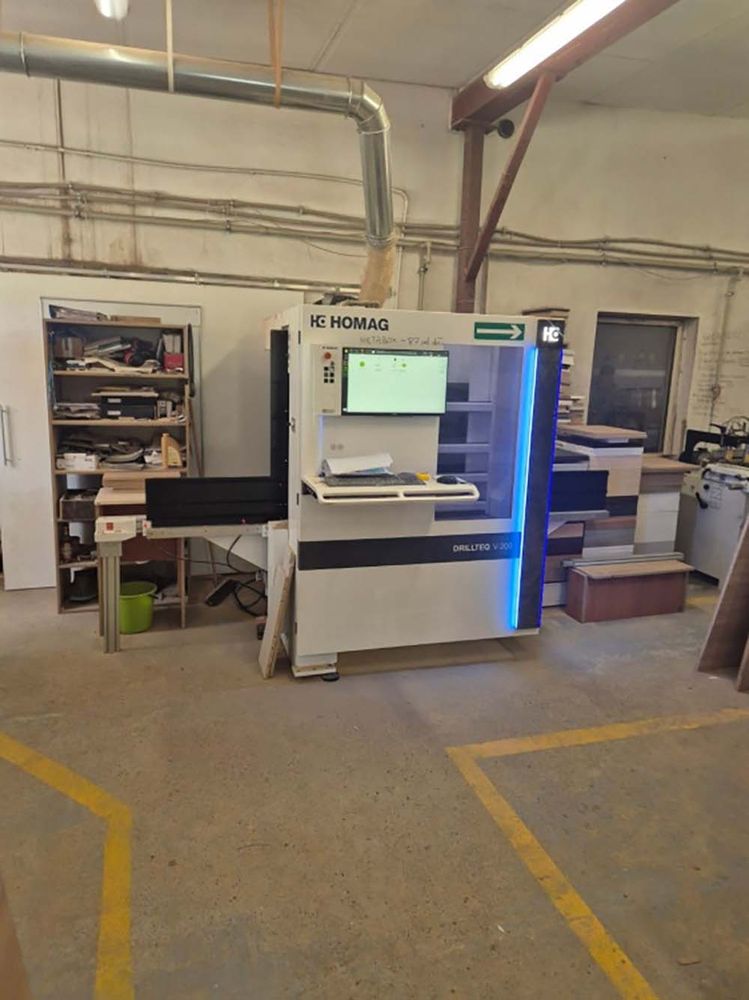

Homag Drillteq V 200

Spindle equipment and configuration: 11 vertical spindles (for drilling in the panel from above) 4 horizontal spindles (2 left + 2 right, for edge drilling)
Circular saw for cutting grooves in the X axis
Operating parameters: Panel processing range: up to 3050 × 850 × 60 mm
Control: HOMAG power Control / woodWOP
Functions: vertical, horizontal drilling, milling, grooving
Pneumatic pressure system
Automatic chip and dust extraction (connection Ø 120 mm)
Power supply: 400 V, 50 Hz
Year of production: 2020
The machine is fully functional, well-maintained, used in one shift.
All functions work flawlessly.
The machine can be checked in operation on site.
Application: Production of custom-made furniture, drilling for fittings, connections, pre-drilling, grooving, processing of MDF, chipboard, plywood, HDF, etc.
