Homag BMB 922/35/13/B 4 axis

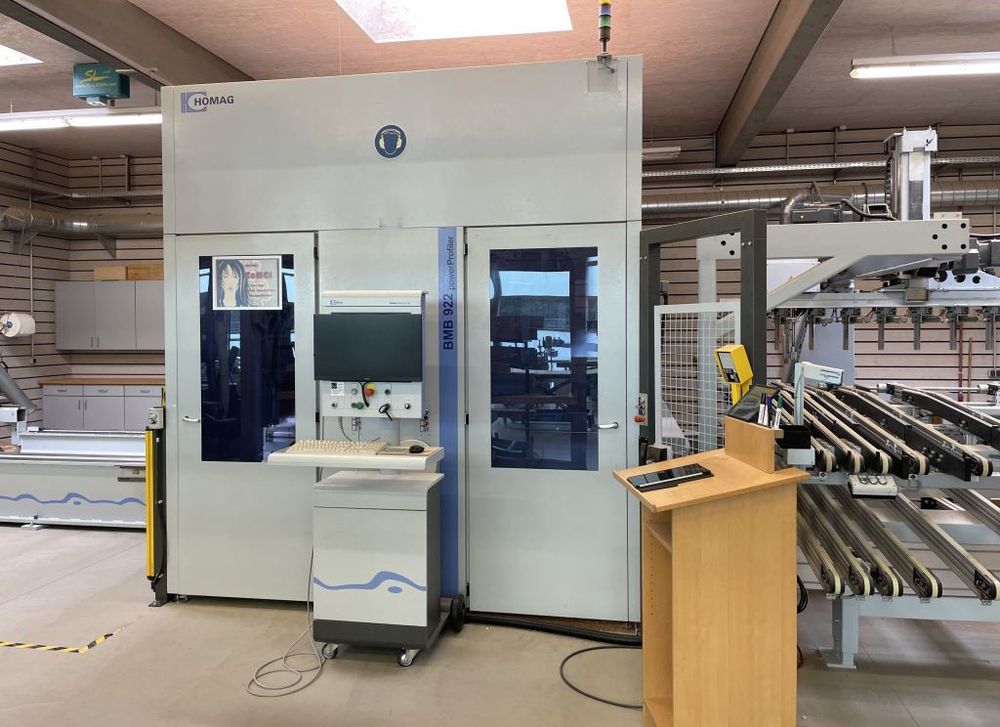

Very well-maintained Homag Profi BMB 922/35/13/B CNC machining center with automatic loading and unloading
For machining timber for windows, frame doors, or similar workpieces made of wood or wood-based materials.

HIGHLIGHTS:
- Workpiece length up to 6000 mm (with regripping); Workpiece width up to 300 mm for
machining individual parts, door leaves up to 1,300 mm on additional crossbeams, workpiece thickness up to 150 mm
- Automatic loading and unloading of individual parts, buffer with 2 m depth
- Automatic positioning of collets, automatic reclamping
Interior/exterior profiling
- 2 x 4-axis high-performance spindles with HSK 63 F taper with C-axis
- C-axis extension for Flex5+ unit
- Fixed drilling head with 13 spindles V9/H4: with 9 individually selectable vertical drilling spindles and 2 horizontal drilling spindles with dual output, 1 in the X direction and 1 in the Y direction
- 18-position disc tool changer
- 72-position chain tool changer
- Additional console table for machining door leaves and arches
including various vacuum clamps and PowerClamp clamping system for the additional console table
- Vacuum pump
- Chip conveyor belt
- Including interchangeable units (saw unit, lock case unit, dowel drilling unit 3 + 1, drilling and milling unit 4 spindles, FLEX 5 unit)

- OPTIONAL window tools:
Wooden windows IV 67/77/89 – Year 2011
Front door IV 67/77/89 – Year 2011
Lift-and-slide windows IV 67/77/89 – Year 2011
Wood-aluminum windows 67/77 – Year 2018
Wood-aluminum front door 67/77 – Year 2018
