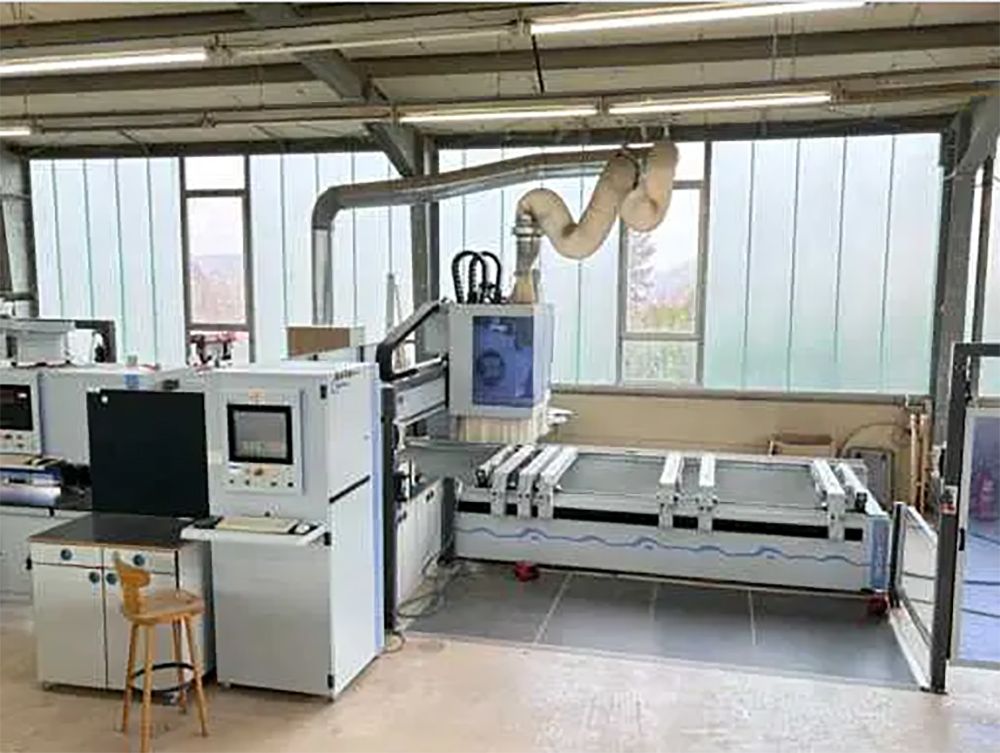

Homag VENTURE 21M - BAZ 211

Technical Data:
Machine Weight: 7,000 kg

Workpiece Dimensions:
Max. workpiece length (incl. tool diameter): approx. 3,225 mm
Max. workpiece length (all aggregates): approx. 3,050 mm
Max. workpiece width (rear stop incl. tool diameter): approx. 1,550 mm
Max. workpiece width (rear stop all aggregates): approx. 1,400 mm

Technical Equipment & Features:
Main spindle approx. 18 kW, with C-axis and Flex-5 interface
Main spindle speed: 0 – 24,000 rpm
10-position and 18-position plate-type tool changers
MPU 360° drilling head (V20 / H10 / Saw / S360°)
Approx. 30 spindles
2.7 kW motor, frequency-controlled

Travel speeds:
X-Y axis: approx. 80 m/min
Z axis: approx. 30 m/min

Console table with LED position indication system
6 consoles, each approx. 1,340 mm long
Vacuum pump
Control system: Power Control PC85
Software: WoodWOP 5.0
