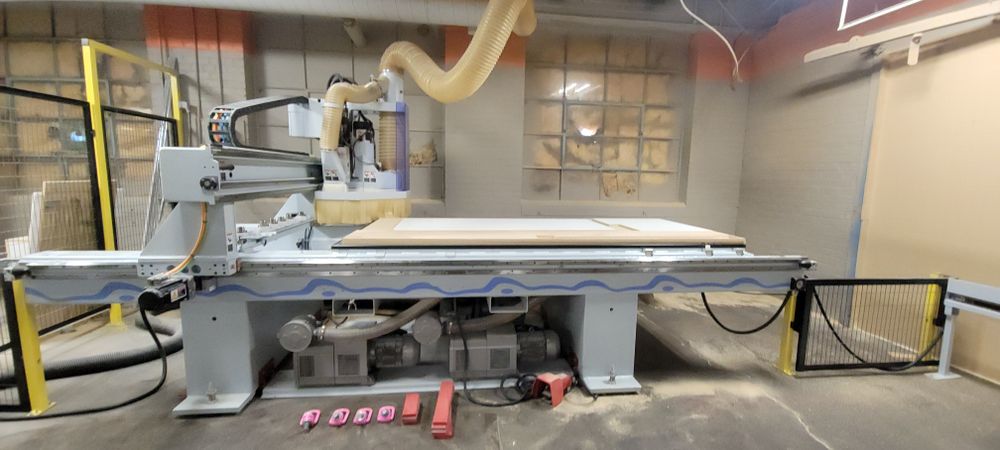

Homag, Weeke Optimat BHP008 Vantech 480

Condition: Used – Very Good Operating Condition
Machine Type: CNC Point-to-Point Machining Centre / CNC Router

Key Features:
4' x 8' CNC machining centre
12 HP (9 kW) HSK 63F routing spindle
Spindle speed range: 1,250 – 24,000 RPM
7-position automatic tool changer
7-spindle vertical drill block
Matrix vacuum table system
Dual-drive gantry construction
WoodWOP programming platform
CNC routing, drilling, and grooving capabilities
Heavy-duty HOMAG / Weeke industrial platform
Automated machining operations
Suitable for custom and production woodworking applications

Working Capacity:
Working Area:
X-Axis Working Length: 2,500 mm (98.4")
Flat table nesting configuration
4' x 8' panel processing capacity
Matrix vacuum table work surface

Routing System:
Main Spindle:
HSK 63F tooling interface
12 HP (9 kW) spindle
Speed range: 1,250 – 24,000 RPM

Tool Changer:
7-position automatic tool changer
Automatic tool pick-up station
Integrated tool length control system

Drilling Capability
Vertical Drill Bank:
7 vertical drilling spindles
Integrated boring capability
Designed for cabinet and panel component production

Axis Drive System :
Dual synchronized X-axis drives
Rack-and-pinion drive on X-axis
Ball screw drive on Y and Z axes
Digital servo motors and controls
High-precision machine motion system

Vacuum System :
Matrix Vacuum Table:
Segmented Matrix vacuum system
Total vacuum capacity: 267 m3/h

Machine Performance:
Vector speed: up to 96 m/min
Dual-drive gantry for improved machining accuracy
High-speed processing capability

Software & Control :
Included Platform:
Weeke CNC Control System
WoodWOP programming software
DXF import capability
CNC simulation functionality

Electrical Specifications :
Voltage: 480V
Phase: 3 Phase
Frequency: 60 Hz
Maximum Full Load Current: 37 Amps
Fuse Size: 50 Amps
Control Voltage: 24V
Largest Motor Current: 21 Amps
Enclosure Type: 12
