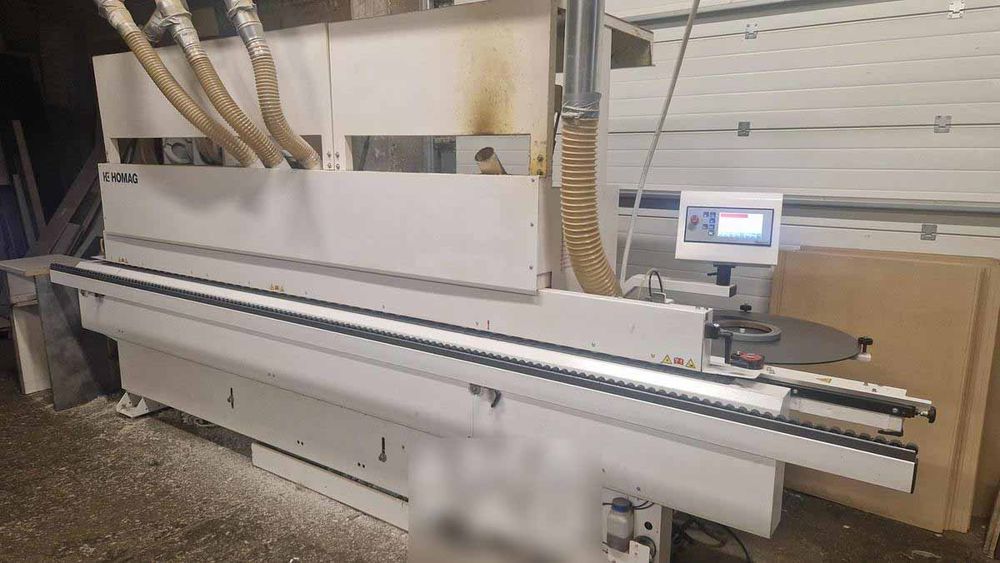

Homag EDGETEQ S-240 PROFI KDF 230
EUROPE (Central and Eastern)
Compact edgebanding machine of the EDGETEQ series for the small handicraft business with possibility of automatisation of the units.
Basic equipment (2020):
Control easyTouch
Joint milling unit
Gluing unit + 1 spare glue pot.
Cutting saw unit, double motor, pneu. adjustable
Milling unit with manual adjust on flush, fibre, radius
Form milling unit/Edgerounding unit
Profile scraper, pneu. adjustable
Flat scraper
Buffing unit
Technical data (2020):
Machine length [mm]: 4.153
Workpiece width
workpiece thickness 8 - 22 [mm]: 70
workpiece thickness 23 - 50 [mm]: 120
workpiece thickness 41 - 60 [mm]: 150
Workpiece thickness [mm]: 8 - 50 (opt. 8 - 60)
Edge thickness [mm]: 0,4 - 3
Feed [m/min]: 11
