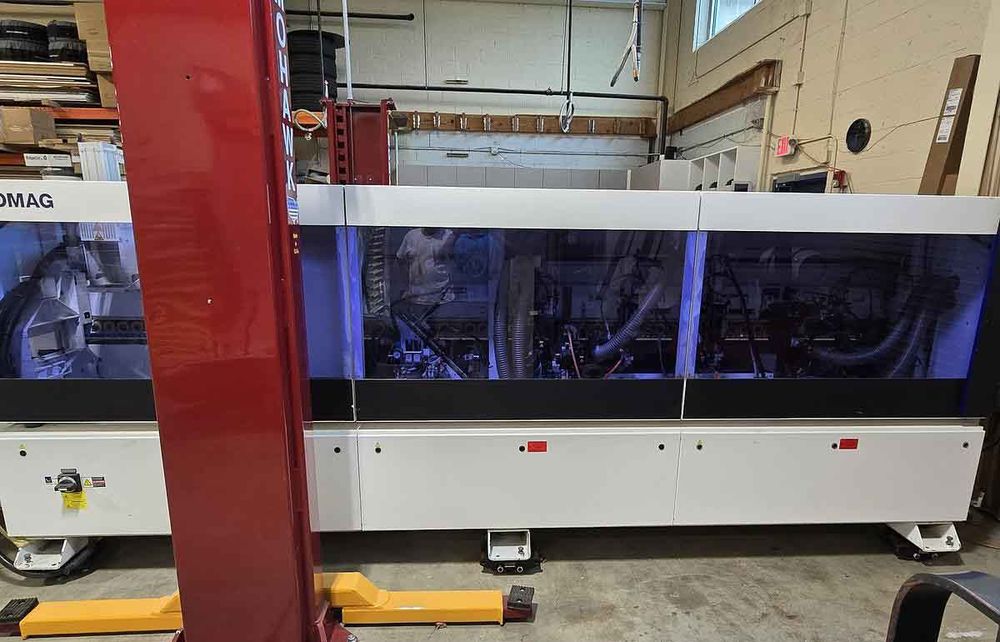

Homag Edgeteq S380 6.6

Machine Features:
● powerTouch Program Control
● Feed speed: 8 – 20 m/min
● electrical equipment installed according to UL regulations
● top pressure roller hold-down, motorized for workpiece thickness adjustment
● smooth upper pressure rollers
● automatic feed track lubrication system
● program-controlled infeed fence positioning
● automatic magazine for coil feeding from outside the machine
● workpiece gap optimization reduces spacing between parts to increase output
● Separating Spraying Unit
● Joint Trimming Unit for pre-trimming the workpiece edge prior to processing

Note:
The diamond cutter heads on this machine are only capable of processing a maximum workpiece thickness of 40 mm.
Optional 60 mm tooling is available upon request.

● panel preheating zone five inches
● QA-65 N quick melt granulate glue application system with automatic purging function when using EVA and PUR glues and sliding pre-melting unit
● quick change glue tank
● PUR Easy Melt Pre-melting unit for use with 2kg PUR glue slugs
● Lubrication spray unit on the last pressure zone roller for high gloss peel coat processing
● software pre-installation for anti-static unit
● infrared radiant quartz heating unit between glue roller and pressure zone for optimum gluing strength
● program-controlled positioning of the pressure zone. First pressure roller driven and three (3) idle pressure rollers
● Double-Motor End Trimming Unit with straight and chamfer capability. Chamfer up to 15 degrees.

Program-controlled indexing from straight to bevel end trimming
● MS 40 Multi-Stage Fine Trimming Unit with four (4) working positions: profile 1, profile 2, bevel, and flush trimming. Auto-tilt and servo control for edge thickness. Nested top copy system.
● MF 50 Multi-Functional Contour Trimming Unit for continuous trimming and profile corner trimming. Magnetic Linear Drive System with “soft touch” feature
● MZ 40 Multi-Stage Scraping Unit with program control for two (2) different radii with servo-controlled vertical and horizontal tracing. Nested top copy system.

Machine Features (continued):
● Finish Scraping Unit
● Detergent spray unit
● Buffing Unit with two (2) motors, two (2) cloth buffing discs (150 x 20 mm diameter)
● LOOPTEQ O-200 (TFU 120) Return Conveyor Connection Kit
● sound enclosure with centralized dust extraction outlet and internal LED lighting
● electronic frequency changer for all trimming motors
● isolation transformer with variable infeed voltage for balancing all three (3) phases of incoming power and increasing the lifetime of the machine’s electrical components

Technical Specifications:
Edgeband thickness:
COILS :
0.4 – 3 mm
(1/64 – 1/8 in)

STRIPS:
0.4 – 12 mm
(1/64 – 1/2 in)

Material cross section:
MAX PVC 135 mm2
VENEER 100 mm2

Edgeband height:
12 – 65 mm
(1/2 – 2 1/2 in)

Workpiece length:
MIN 160 mm
(6 1/4 in)
Workpiece width:
MIN 70 mm
(2 3/4 in)
Workpiece thickness:
8 – 60 mm
(5/16 – 2 3/8 in)

AirTec:
40 mm
(1 5/8 in)

Feed speed:
8 – 20 m/min
(26 – 65 ft/min)

Feed speed (with contour trimming):
14 m/min
(46 ft/min)
Feed motor: 2.2 kW (3 HP)
Pressure section: one (1) driven roller, three (3) idle rollers
Joint trimming unit (2x): 2.2 kW (3 HP) each / 12,000 rpm
End trimming unit (2x): 0.35 kW (1/2 HP) each / 12,000 rpm
Fine trimming unit (2x): 0.55 kW (3/4 HP) each / 12,000 rpm
Contour trimming unit (2x): 0.4 kW (1/2 HP) each / 12,000 rpm
Total power required: 27 kW
Amperage:
@ 230V
60 amps
@ 460V
30 amps
Machine length:
6,273 mm
(20.5 ft)

Machine width:
1,604 mm
(5.2 ft)

Working height:
950 mm
(37 3/8 in)

Total height (with hoods open):
2,266 mm
(7 1/2 ft)

Machine weight:
2,940 kg
(6,481 lb)
Eelectrical connection: 208/230/440/480V / 3-phase / 60 Hz
Dust extraction: (1x) 120 mm, (1x) 140 mm, (2x) 100, 2,048 CFM
Machine compressed air: 15 CFM, 6 bar (87 PSI), 1/4” ID airline
