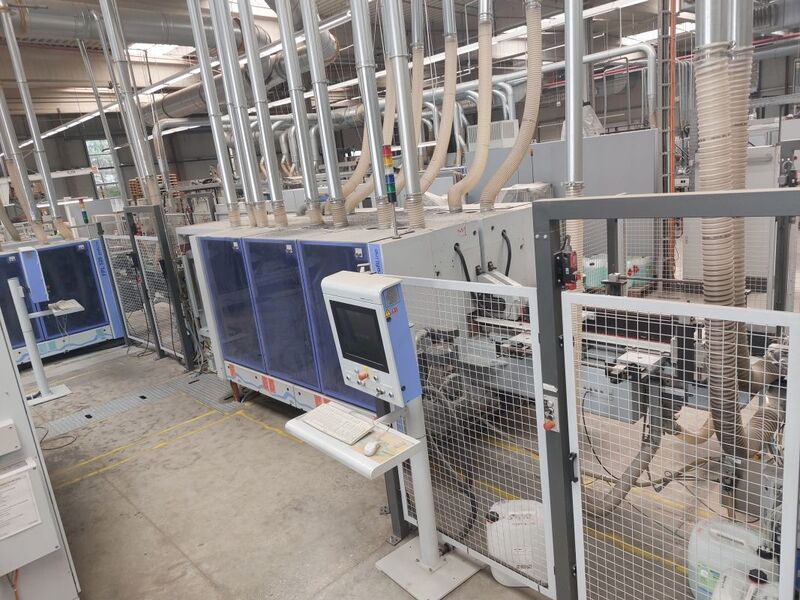

Homag Laminate profiling machine

Laminate profiling system consists of:
- Feeding
- length profiling
- Cross profiling
- Control and parking
- Automatic inverting machine and turning
- Film machine and shrink tunnel
- Stacking

Technical data of the length and cross machine:
Material: LVT
Formats
Length: 500 mm - 2000 mm
Width: 140 mm - 600 mm
Thickness: 4 mm - 8 mm
Format 1: 1200 mm x 140 mm
Format 2: 1500 mm x 250 mm
Format 3: 600 mm x 300 mm

Feed speeds:
length machine: max.: 130 m/min
Cross machine: max.: 40 m/min
Cam distance 300 mm: Fixed
Cam height: 2.8 mm extended

Electrical voltages:
Line voltage 400 V / 50 Hz, 3 phases with loadable neutral conductor
Operating voltage 400 V / 50 Hz
Control voltage 230 V / 50 Hz + 24 V / DC
Electronic standard DIN, DIN EN, DIN ISO

General material parameters:
Raw panels
Raw panel length 600 - 2000 mm
Raw panel width 140 - 600 mm
Raw panel thickness 4 - 8 mm

Connected loads (complete system) :
Electrical connected load (installed) approx. 285 kW
Required dust extraction capacity approx. 36000 m³/h
Compressed air consumption approx. 3000 NL/min
Operating pressure min. 6 bar
