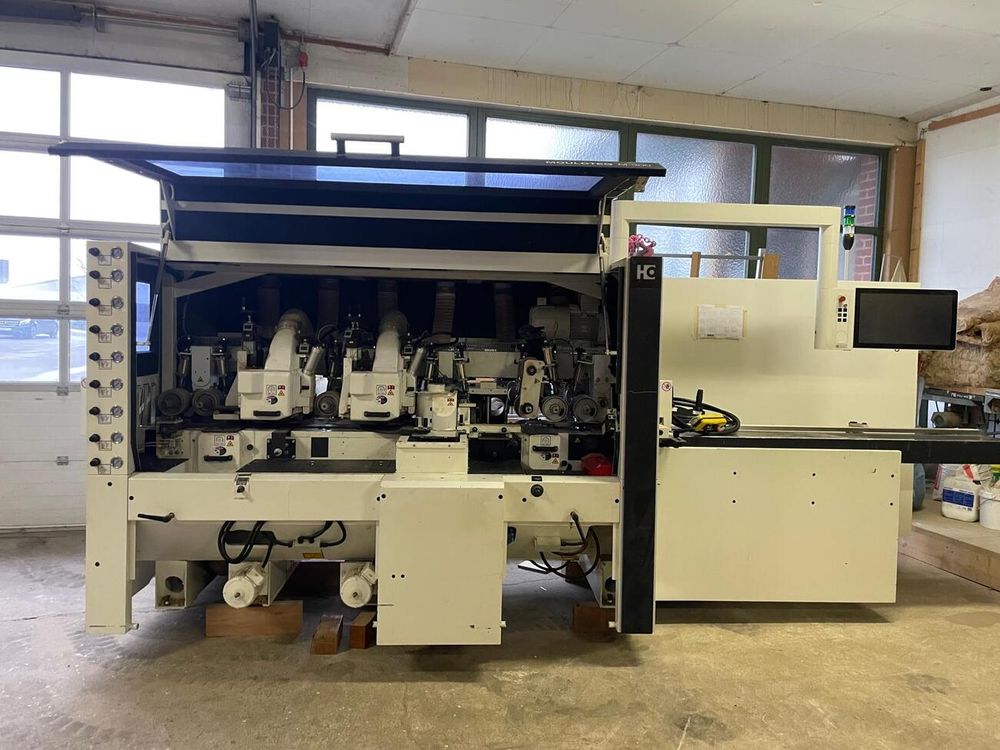

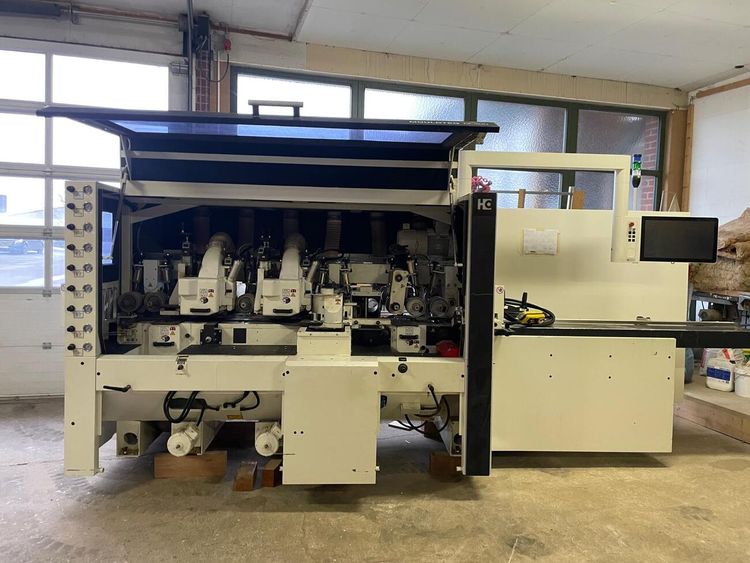

Homag Optiat LPP306

Used planing and profiling machine

OPTIMAT LPP306:
Planing and profiling machine with 6 working spindles.

Workpiece width after processing:
- min. 10 mm
- max. 250 mm

Workpiece height after machining:
- min. 10 mm
- max. 160 mm

Control:
- PowerControl with powerTouch LPP300

Feed table 2,500 mm

Feed speed:
min. 6 m/min
max. 24 m/min

FIRST LOWER SPINDLE:
- Spindle motor power 7.5 kW
- Siemens IE3 energy-saving motor

Power speed range:
- 7.5 kW
- 6,000 rpm

Spindle diameter 40 mm
Spindle length 281 mm

FIRST RIGHT SPINDLE:
Spindle motor power 7.5 kW, adjustable
- Siemens IE3 energy-saving motor
- Spindle speed continuously adjustable

Power speed range:
- 7.5 kW
- 4,000 rpm
- up to 8,000 rpm

Spindle diameter 40 mm
Spindle length 176 mm

FIRST LEFT SPINDLE:
Spindle motor power 7.5 kW, adjustable
- Siemens IE3 energy-saving motor
- Spindle speed continuously adjustable

Power speed range:
- 7.5 kW
- 4,000 rpm
- up to 8,000 rpm

Spindle diameter 40 mm
Spindle length: 176 mm
Absolute length: 176 mm

FIRST UPPER SPINDLE:
- Spindle motor power 7.5 kW, adjustable
- Siemens IE3 energy-saving motor
- Spindle speed continuously adjustable

Power speed range:
- 7.5 kW
- 4,000 rpm
- up to 8,000 rpm

Spindle diameter 40 mm
Spindle length 266 mm

SECOND UPPER SPINDLE:
Spindle motor power 7.5 kW, adjustable
- Siemens IE3 energy-saving motor
- Spindle speed continuously adjustable

Power Speed range:
- 7.5 kW
- 4,000 rpm
- up to 8,000 rpm

SECOND LOWER SPINDLE:
Spindle motor power 7.5 kW, adjustable
- Siemens IE3 energy-saving motor
- Spindle speed infinitely variable

Power Speed range:
- 7.5 kW
- 4,000 rpm
- up to 8,000 rpm

Spindle diameter 40 mm
Spindle length 266 mm
