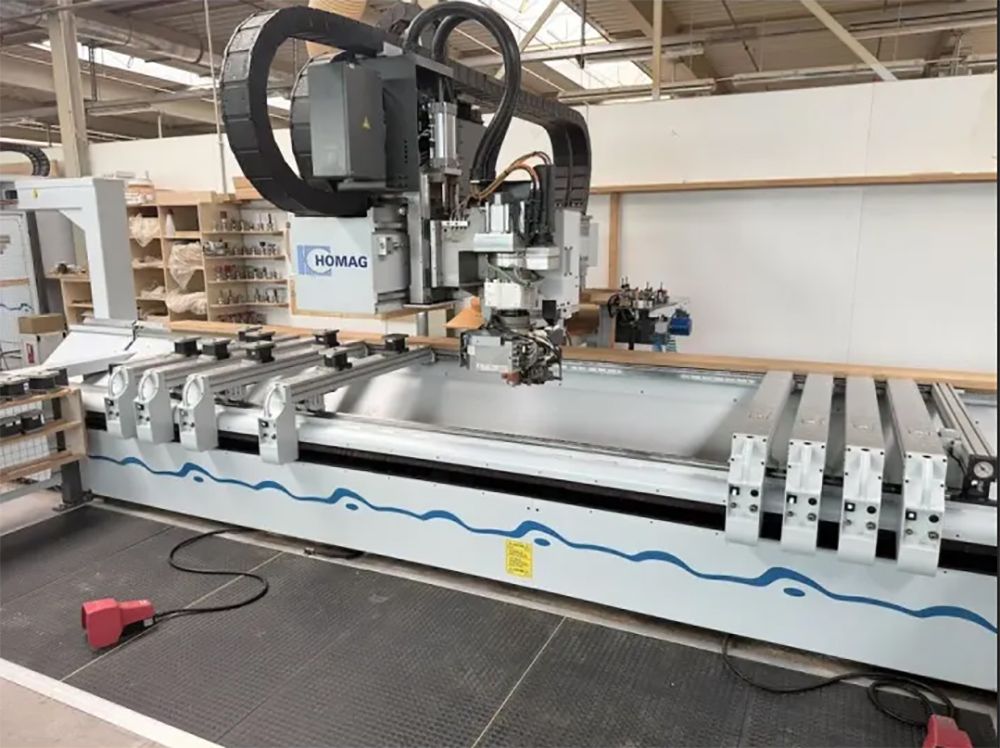

Homag OPTIMAT BAZ 222/40/K

CNC Machining Center
This electronically controlled machine is suitable for milling, edge gluing, finishing, and drilling of furniture parts, solid wood, or similar materials.

Features:
Two independent Y-axes for main spindle and gluing unit
Workpiece table: 8 clamping consoles, Y-1300 mm, tubeless vacuum guidance
Control: POWER CONTROL PC85
Software: WoodWOP 5.0
Main spindle power: 7.5 kW
Tool changer: 12-position
C-axis interface for tool change with integrated pneumatic / electrical / electronics supply and drive
Drilling head: 17 spindles
Saw / Kapp unit
360° gluing unit: strip and roll material
Max. edge thickness: 2 mm (veneer), 3 mm (plastic)
Chip conveyor belt
Vacuum pump: Busch MM 1322 A, 300/360 m³/h (replaced in 2013)

Included:
Complete tooling and accessories included with the machine
The machine is fully operational and ready for production.
