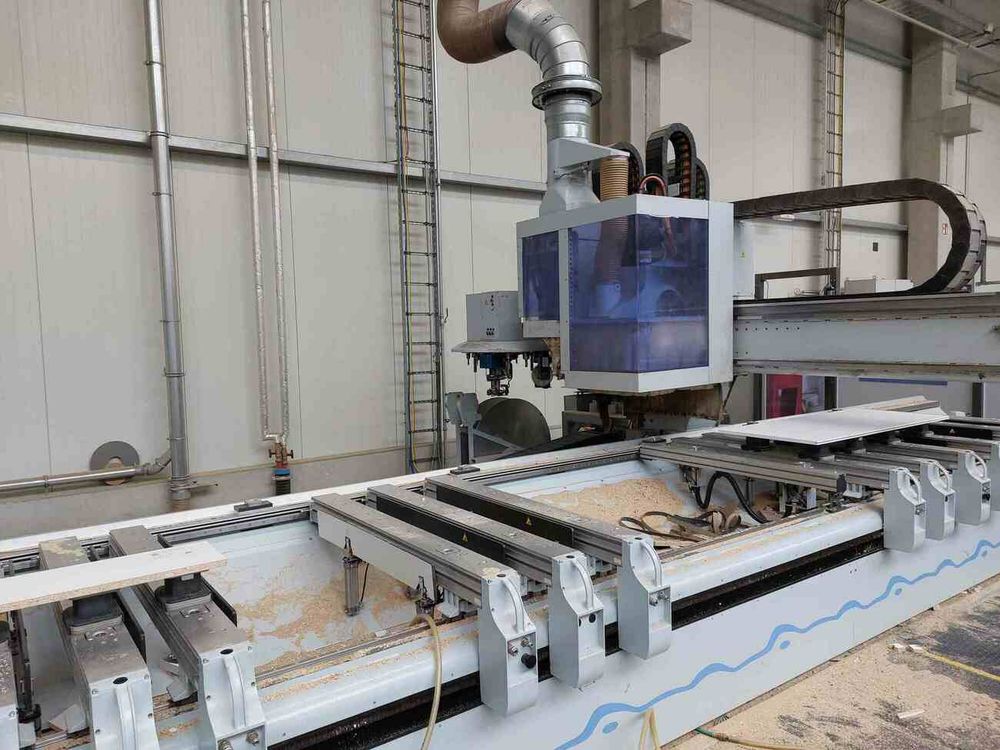

Homag OPTIMAT BAZ222/60/K

Used CNC-processing centre
with gluing unit
with FLEX-5unit

Workpiece length max:
- All units: singe field 6.000mm, pendular process 2.375mm,
- At tool-Ø 25mm: 6.175mm, pendular 2550mm

Workpiece width max.
frontal:
- All units 1150mm,
- At milling process with tool-diam. 25 mm: 1220mm*,
- At edge banding: 1220mm*
* at workpiece thickness max. 40 mm

rear:
- All units 1400mm,
- At milling process with tool-Ø 25 mm: 1550mm,
- At egde banding 1475mm
- with standard flush milling and gluing 1500mm

Workpiece thickness:
- Max. 300 mm inclusive chuck at use as top miller
- Up to max. 60 mm with standard clamping without limits for units and suction
- Min. 12 mm at chamfer milling
- Min. 16 mm at radius millers or min. 2 x Radius + 10 mm

Main spindle 15 KW, HSK F63
C-Axis with unit interface

Plate changer 18-fold D=130
- Tool weight max. 6 kg
incl. holding for max. 10 kg units

Drilling head 30 spindles: V20 / H10/ S360° "MPU"
- 1 Motor 2,7 kW, frequency changed
- Rotation speed max. 7500 1/min

20 verticale spindles High-Speed:
- Spindle order in U-Form
- 3 rows of drillers with 11, 3 und 6 spindles

10 horizontal spindles:
- Order of spindles in pairs
- 4 pairs of drilling spindles, grid 32 mm
- 1 pair of drilling spindles, distance 320 mm

Groove saw: blade-Ø. : 200 mm

Adaptive milling spindle 6 KW for drilling head
- 6 KW at S6 operation

FLEX-5 unit
C-axis prepared for FLEX-5 unit
- coupling element

Gluing unit POWER EDGE:
- for edge material (rectangular cross sectional area) on straight workpiece edges
- Gluing unit for 360°-gluing with butt joint

Edge height 105 mm for gluing unit BAZ222/322
allows edging of workpieces up to 100 mm workpiece thickness
Flush milling unit for tool changer
Combi-flush milling-scraping unit WD 100 MM
Combi- end trimming and copying unit., traced
Lock recess milling unit 2 spindles D=16/20
Chip transport belt for B200/52-72
LED-setup support console 1300-1600 mm without tools
