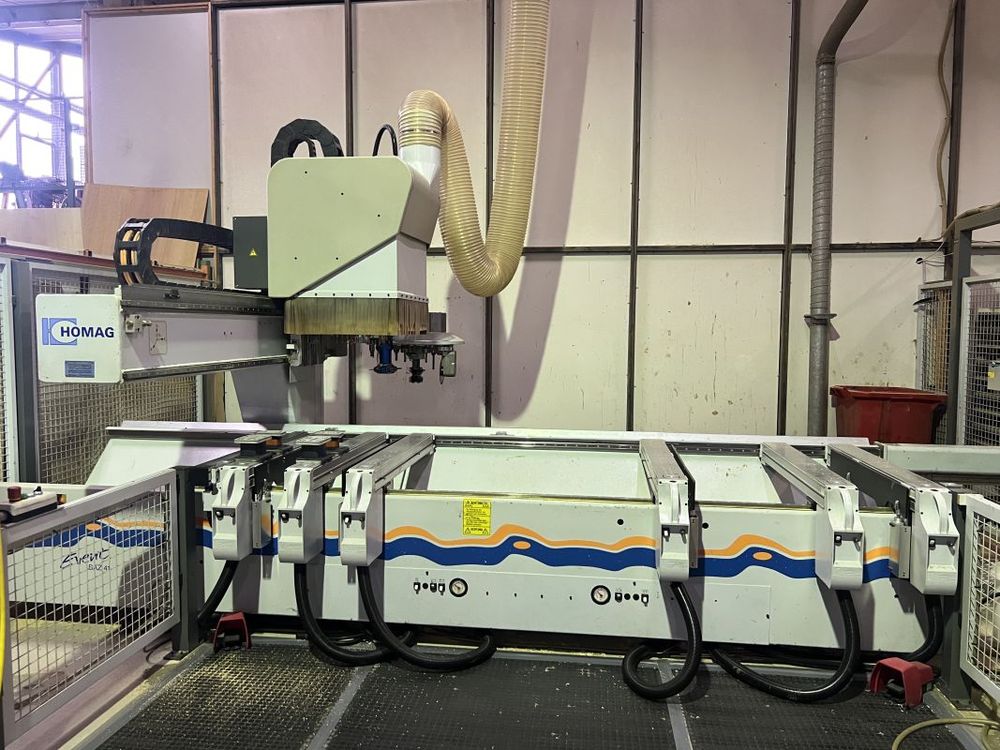

Homag Optimat BAZ41/30/K Event

CNC machining center
Technical data:
- Workpiece length max. 3000 mm
- Workpiece width: max. 1300 mm for milling with a tool diameter of 25 mm, max. 1150 mm for all units
- Workpieces larger than 1150 mm must be placed against the rear longitudinal stops
- Workpiece thickness: max. 60 mm with standard clamp, max. 200 mm with clamping templates

4 lifting rails
- With plastic sliding coating, attached to the sides of consoles 1, 3, 4, 6
- Lifting device for 100 mm clearance under the workpiece support
- Total stroke approx. 105 mm
- Lifting force per lifting rail 25 kg
- The min. part size increases by 50 mm

Pendulum machining
- For milling/drilling (no gluing) of 2 workpieces in pendulum mode
- Separate workpiece clamping with separate foot switches
- Workpiece length in pendulum mode max. 900 mm

Main spindle 7.5 kW water-cooled
- For HSK F63
- Vector-controlled asynchronous motor 7.5 kW at S1
- Tool weight max. 5 kg incl. holder
- Tool length max. 200 mm from lower edge of motor spindle
- Tool diameter: max. 180 mm for milling tools, max. 200 mm for grinding tools
- Speed range continuously programmable from 0 - 18000 rpm
- Full rated power from 12000 rpm

12-station turret changer
- for tools and units with HSK F63
Possible tool and unit configurations:
- 12 x max. diameter 130 mm or
- 6 x max. diameter 180 mm and 6 x max. diameter 70 mm

Laser positioning aid for vacuum clamps

Drilling head 17 spindles vertical
- 1 motor 4 kW, frequency-controlled
- Speed: 4500 - 6000 rpm selectable via program
- For vertical drilling, extension stroke 50 mm
- 17 drilling spindles up to max. 35 mm bore diameter
- Each spindle individually selectable
- 11 spindles in X direction, 7 spindles in Y direction
- Spindles arranged in T-shape
- Spindle spacing 32 mm
- Total drill length 70 mm
- Shank diameter 10 x 20 mm
- With clamping surface and adjusting screw
- Direction of rotation: alternating left-right rotation

Aggregate interface
- For connecting the machining aggregates
- Including pneumatic interface and swivel drive C-axis with torque transmission and 3-point support
- Drive for all aggregates with swivel axis
- Swivel range without limitation
- Tubeless compressed air supply

Sawing and trimming unit
- for automatic replacement in the main spindle
- for grooves and cuts from above at any angle to the workpiece, as well as right-angled notches
- trimming of edge overhangs and cutting to a maximum workpiece thickness of 50 mm
- speed max. 9000 rpm
- Mounting flange diameter 30 mm with 4 countersunk head screws M5. TK diameter 52 mm. LL
- Includes cutting and crosscut saw diameter 180x30x3.2 Z=54
- Saw blade thickness max. 10 mm for grooving
- Saw blade diameter max. 200 mm
- Unlimited swiveling via C-axis

Adapter drill head horizontal 4-SP+saw 0/90 degrees
- Pneumatic swiveling 0/90 degrees
- Drive via drill head
- For horizontal drilling in 4 directions (X+/X-/Y+/Y-)
- One drill spindle prepared for groove saw blade for grooving in X and Y direction
- Extension stroke 100 mm in Z direction
- Drill chuck diameter 10 mm
- Drill length 70 mm
- Drill diameter max. 10 mm
- With clamping surface and adjusting screw
- Saw blade diameter 125 mm
- Saw blade width max. 6 mm
- Mounting flange diameter 30 mm
- 4 countersunk head screws M 5
- Pitch circle diameter 48 mm
- Speed max. 8000 l/min

Blow-off nozzle Workpiece edge for tool changer

Gluing unit 360 degrees
- For straight edges with direct glue application
- Edge feeding by hand as strip material
- Inner radius min. R=30 mm at 90-degree corner
- Outer radius depending on flexibility of edge material
- Edge height max. 65 mm
Edge thickness
- Plastic: 0.4 - 3 mm
- Veneer: 0.4 - 2 mm
- Workpiece width: 1220 mm

Combined flush milling and finishing unit
- Side 1 designed for flush milling
- Side 2 for finishing the pre-milled edge
- Scanning from above, below, and from the side
- Min. outer radius approx. R=5 mm at 90-degree corner
- Min. inner radius approx. R=30 mm at 90-degree corner
- Speed max. 12000 rpm
- Workpiece thickness max. 60 mm
- Min. workpiece overhang approx. 25 mm

2 x WPL radius cutter head
- Z=3, incl. 9 indexable inserts
- Edge thickness max. radius + 1 mm
- Radius R= 2 mm

2 x profile cutters for finishing
- Radius R= 2 mm

External pre-cutting station and single roller
- Roller diameter 800 mm
- Edge length min. 350 mm
- Edge height max. 65 mm

Ethernet network connection
WoodWop package AV-PC BAZ-arm Optimat
