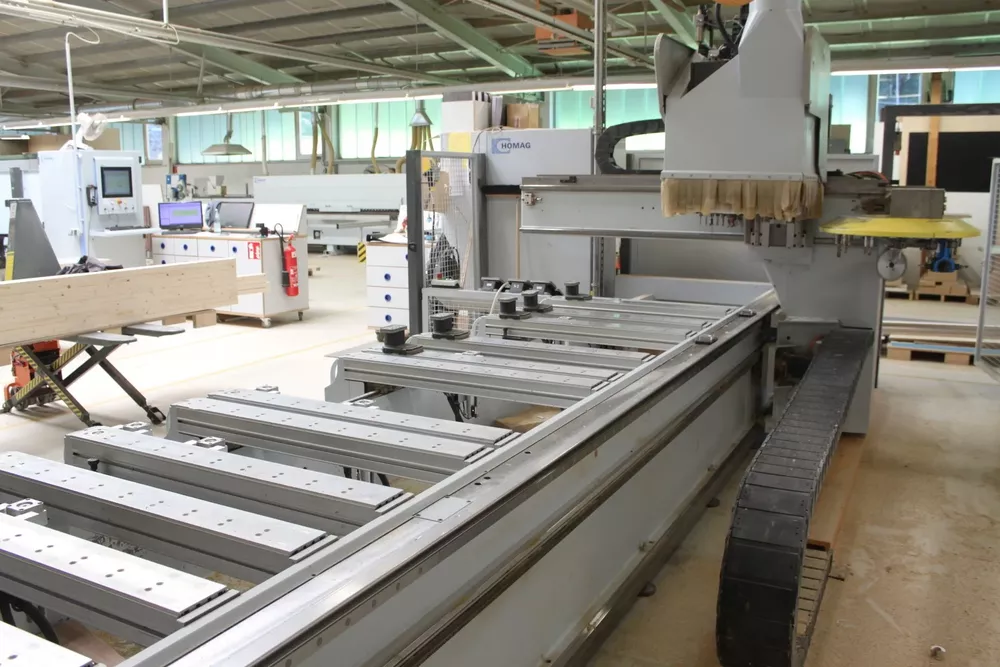

Homag OPTIMAT BOF41/45/K

Machining Center
TECHNICAL DATA:
Workpiece length For BOF41/45, the maximum workpiece width is 4500 mm. rmax. 1300 mm for milling with a tool diameter of 20 mm; 1150 mm for all units
Workpieces larger than 1150 mm must be placed against the longitudinal stops at the rear.
Workpiece thickness max. 60 mm with standard clamp max. 200 mm with clamping templates (provided by the customer)
The specified workpiece dimensions are not equivalent to the maximum possible machining sizes per unit – see separate table.
Minimum workpiece size depends on: clamping devices, workpiece surface and contour.
Working height (bottom edge of workpiece): 920 mm
Soil conditions must correspond to the foundation plan

Main spindle 7.5 kW water-cooled for HSK F63 - DIN 69893.
Incl. dust extraction for all tools and units.
Vector-controlled asynchronous motor 7.5 kW at S1, water-cooled.
Maximum tool weight 6 kg.
Maximum tool length: 200 mm
Motor spindle bottom edge tool diameter max. 180 mm for milling tools max. 200 mm for grinding tools
Frequency converter for electronic speed control. Infinitely variable speed range from 0 to 18,000 rpm.
Full rated power from 12,000 rpm.
Power is reduced accordingly when the speed is reduced.
Tool holder and tools not included. 12-position plate changer for tools and attachments with HSK F63.

Possible tool and attachment configurations:
12 x diameter max. 130 mm or 6 x max. diameter 180 mm and 8 x max. diameter 70 mm.
Drill head with 12 spindles, 1 motor 4 kW, frequency-controlled.
Speed ​​selectable via program: 4500/6500 or 7500 rpm.
For vertical drilling, spindle stroke 50 mm.
12 drilling spindles up to max. 35 mm bore diameter .
Each spindle can be individually selected.

6 spindles in the X direction, 7 spindles in the Y direction.
Spindles arranged in an L-shape.
Spindle spacing 32 mm, drill bit length 70 mm, shank diameter 10 x 20 mm.
With clamping surface and adjusting screw.
Rotation direction: alternating clockwise and counterclockwise.
No tools required.
